|Name:||Automatic BLDC Motor, Fan Motor Stator Automatic Needle Winding Machine||Color:||White/Blue|
|Winding Head:||4||Air Pressure:||≥0.6MPa|
electric motor coil winding machine,
ceiling fan winding machine,
BLDC Motor Needle Winding Machine

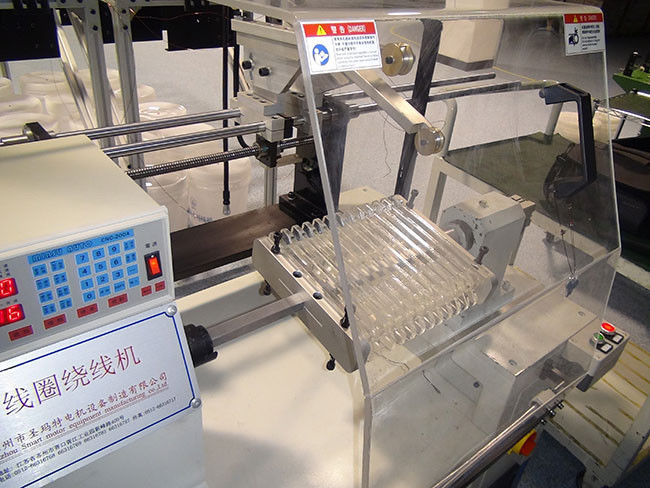

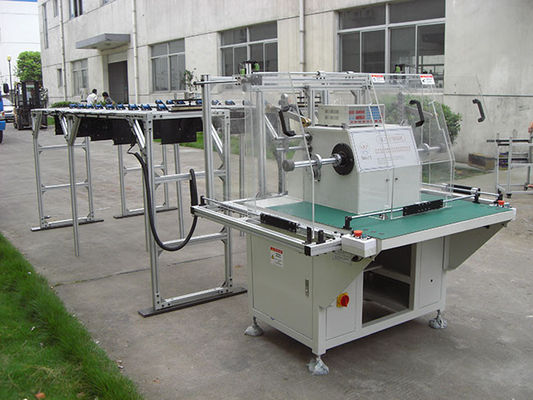

Automatic BLDC Motor, Fan Motor Stator Automatic Needle Winding Machine SMT - SR350
(1) Technical parameter of BLDC motor needle winding machine:
Statck ID: ≥25mm
Stack OD; ≤150mm
Stack height: 10~100mm
Suitable wire diameter: 0.3~1.0mm
Power supply:220V 50/60HZ
(2) Machine function and characteristic of BLDC motor needle winding machine:
This machine is suitable for winding BLDC stator. It equips with servo system. It can automatically interwine wire end, winding, arraying, indexing, cutting, demolding.
(1) Main Technical Parameter
|Power Supply||220V/50/60Hz 1.5Kw|
|MOQ||1 Set Winding Machine|
|Delivery time||30 days after the order is confirmed|
(2) The operation steps of this machine
Production efficiency of this machine
Around 1000pcs/8 hours,it is only a rough idea, depends on the armature slots number and turn number.
Load armature on the shuttle manually, press START button,shuttle will deliver the armature to the winding position, and automatic winding, indexing and wire cutting,after completing, the shuttle will take out the finished armature from winding position, operator unload the finished armature, one cycle is completed.
(3) Machine main function and characteristic
Winding tooling: each machine has one set winding tooling and three vertical winding forms.
The whole set of tooling can be changed, and it takes about 15min.
The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
Allow three wires winding simultaneously.
Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
The working rotation speed can be set . Machine has no distinct vibration and noise.
Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.
(4) OEM/ODM Profile
Taking full advantage of experienced engineers, skillful professionals, perfect equipment, strict manufacturing process control and wide coverage service net-work, we are dedicated to provide our customers with the optimized solution to electric motor manufacturing. So far, except the big market share in China, we export out machines to the worldwide countries such as USA, Italy, Australia, India, Brazil, Mexico, Turkey, Thailand, Vietnam, Iran, etc, and our machines share the great reputation among customers for it durable, reliable performance, reasonable price and good after-service.
(5) Production Line Profile
With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.
(6) About Us
The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.
Combining years of experience and the design idea to try all best to satisfy customer’s production requirements, we can provide various options, like semi-auto production line, auto production line and unmanned production system, etc. Our high-quality and high-efficiency team always provide the optimal project, technical support and production process, manufacture the high-quality equipment and do the after-service in time for customers. We sincerely hope to establish and maintain the long term contact and cooperation with new and old customers to share the latest technical achievements in motor manufacturing machinery industry.
Contact Person: Larry
