|Name:||Automatic Stator Coil Winding Machine / AC / DC Electrical Series Motor||Color:||White/Blue|
|Winding Head:||6||Air Pressure:||≥0.6MPa|
electric motor coil winding machine,
ceiling fan winding machine,
Automatic Stator Coil Winding Machine

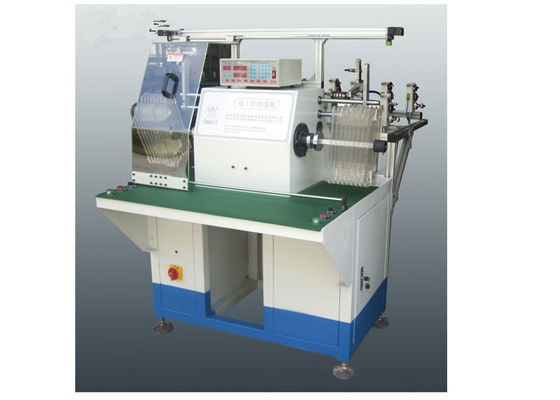

Automatic Stator Coil Winding Machine / AC / DC Electrical Series Motor SMT - R350
all stell parts are chrome-plating, all aluminium parts are anodized. The main standard parts in our machine were imported famous brand, guarantee accurate operation.
Panasonic or Mitsubishi PLC
Panasonice or Keyence optical fiber sensor
(1) Main Technical Parameter
|Power Supply||220V/50/60Hz 1.5Kw|
|MOQ||1 Set Winding Machine|
|Delivery time||30 days after the order is confirmed|
(2) The operation steps of this machine
Production efficiency of this machine
Around 1000pcs/8 hours,it is only a rough idea, depends on the armature slots number and turn number.
Load armature on the shuttle manually, press START button,shuttle will deliver the armature to the winding position, and automatic winding, indexing and wire cutting,after completing, the shuttle will take out the finished armature from winding position, operator unload the finished armature, one cycle is completed.
(3) Machine main function and characteristic
Winding tooling: each machine has one set winding tooling and three vertical winding forms.
The whole set of tooling can be changed, and it takes about 15min.
The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
Allow three wires winding simultaneously.
Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
The working rotation speed can be set . Machine has no distinct vibration and noise.
Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.
