200mm Flier Electric Motor Winding Equipment  Full Automatic Field

200mm Flier Electric Motor Winding Equipment Full Automatic Field

  • High Light

    electric motor coil winding machine

    ,

    ceiling fan winding machine

    ,

    200mm Flier Motor Winding Equipment

  • Name
    Starter Stator Producing Machine Full Automatic Field Coil Winding Machine
  • Flier
    200mm
  • Transfer Number
    2-6pcs
  • Power Supply
    220V/50/60Hz 1.5Kw
  • Dimension
    (L)1050*(W)1800*(H)1500mm
  • Winding Head
    2-6pcs
  • Air Pressure
    0.6-0.7Mpa
  • Wire Diameter
    0.15-0.9mm
  • Place of Origin
    China
  • Brand Name
    SMT
  • Certification
    ISO9001 / SGS
  • Model Number
    SMT-WR100
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Plywood box, or as tell us your requirement about the package.
  • Delivery Time
    3-9 weeks
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1pcs / 3-8 weeks

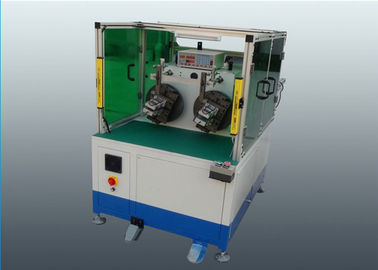

200mm Flier Electric Motor Winding Equipment Full Automatic Field

200mm Flier Electric Motor Winding Equipment Full Automatic Field





This high speed winding machines can wind and tie wires as you needed.Such as adjusting the length of the wire's head and tail.The winding machines can also support wires with magnet ring ,commodities suffix wire,and other special wires.
We can even reform the winding machines for your special needs if you have large production of wires and cables



(1) Main Machine's Information



Model WR100
Wire Diameter 0.15-0.8mm
Rotating Speed 800r/min
Winding head 2pcs
Swing diameter 250mm
Max. winding distance 160mm
Air Pressure 0.4-0.7Mpa
Power Supply 220V/50/60Hz 1.5Kw
MOQ 1pcs
Dimension (L)1050*(W)1800*(H)1500mm



(2) The operation steps of this machine


Production efficiency of this machine
Around 1000pcs/8 hours,it is only a rough idea, depends on the armature slots number and turn number.
Load armature on the shuttle manually, press START button,shuttle will deliver the armature to the winding position, and automatic winding, indexing and wire cutting,after completing, the shuttle will take out the finished armature from winding position, operator unload the finished armature, one cycle is completed.

(3) Machine main function and characteristic


Winding tooling: each machine has one set winding tooling and three vertical winding forms.
The whole set of tooling can be changed, and it takes about 15min.
The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
Allow three wires winding simultaneously.
Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
The working rotation speed can be set . Machine has no distinct vibration and noise.
Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.



(4) OEM/ODM Profile


Taking full advantage of experienced engineers, skillful professionals, perfect equipment, strict manufacturing process control and wide coverage service net-work, we are dedicated to provide our customers with the optimized solution to electric motor manufacturing. So far, except the big market share in China, we export out machines to the worldwide countries such as USA, Italy, Australia, India, Brazil, Mexico, Turkey, Thailand, Vietnam, Iran, etc, and our machines share the great reputation among customers for it durable, reliable performance, reasonable price and good after-service.

200mm Flier Electric Motor Winding Equipment  Full Automatic Field 0

(5) Production Line Profile



With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.



The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.
