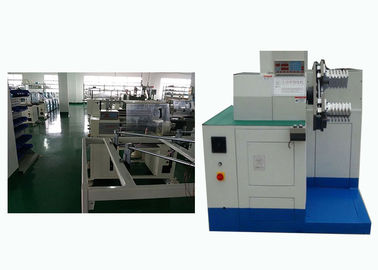

Three Phase Automatic Stator Winding Machine SMT-DR450 ISO9001 / SGS

Three Phase Automatic Stator Winding Machine SMT-DR450 ISO9001 / SGS

  • High Light

    electric motor coil winding machine

    ,

    ceiling fan winding machine

    ,

    3 Phase Stator Winding Machine

  • Name
    Automatic Three Phase Stator Winding Machine
  • Color
    White / Blue
  • Flier
    200mm
  • Transfer Number
    2-6pcs
  • Power Supply
    220V/50/60Hz 2.2Kw
  • Winding Head
    2pcs
  • Air Pressure
    0.4-0.6MPa
  • Wire Diameter
    0.3-1.2mm
  • Effective Length Of The Tooling
    ≤400mm
  • Place of Origin
    China
  • Brand Name
    SMT
  • Certification
    ISO9001 / SGS
  • Model Number
    SMT-DR450
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Plywood Box or You Can Tell Us.
  • Delivery Time
    42 - 69 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1pcs / 42 - 69 days

Three Phase Automatic Stator Winding Machine SMT-DR450 ISO9001 / SGS

Three Phase Automatic Stator Winding Machine SMT-DR450 ISO9001 / SGS





Information needed for Automatic Stator coil Wave Winding Machine inquiry
It will be better if customer could send us detailed drawing including below information.
1. Stator drawing
2. Stator winding drawing
3. Winding distribution drawing
4. Other technical requirement
If possible, it will be better if customer can send us samples.



(1) Main Technical Parameter



Model DR450
Swing diameter ≤450mm
Effective length of the tooling ≤400mm
Parallel wire number ≤16pcs
Wire diameter 0.3-1.2mm
Wire arraying width 400mm
Power supply 220V/50/60Hz 2.2Kw
Machine weight 950kgs
Air Pressure 0.4-0.6MPa
Machine dimension (L)1500*(W)1700*(H)1550mm



(2) The operation steps of this machine


Production efficiency of this machine
Around 1000pcs/8 hours,it is only a rough idea, depends on the armature slots number and turn number.
Load armature on the shuttle manually, press START button,shuttle will deliver the armature to the winding position, and automatic winding, indexing and wire cutting,after completing, the shuttle will take out the finished armature from winding position, operator unload the finished armature, one cycle is completed.


(3) Machine Main function and Characteristic

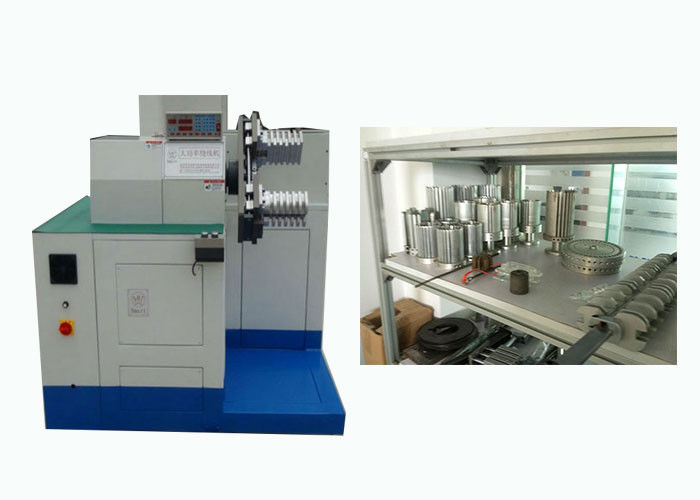

Winding tooling: each machine has one set winding tooling and three vertical winding forms.
The whole set of tooling can be changed, and it takes about 15min.
The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
Allow three wires winding simultaneously.
Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
The working rotation speed can be set . Machine has no distinct vibration and noise.
Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.



(4) OEM/ODM Profile


Taking full advantage of experienced engineers, skillful professionals, perfect equipment, strict manufacturing process control and wide coverage service net-work, we are dedicated to provide our customers with the optimized solution to electric motor manufacturing. So far, except the big market share in China, we export out machines to the worldwide countries such as USA, Italy, Australia, India, Brazil, Mexico, Turkey, Thailand, Vietnam, Iran, etc, and our machines share the great reputation among customers for it durable, reliable performance, reasonable price and good after-service.



(5) Production Line Profile



With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.



(6) About Smart



Located in Suzhou, a beautiful city of industry, commerce heart in Yangtze River Delta, Smart is specialized in the R&D, manufacturing and sales of induction motor machinery. Our machines produced in Suzhou factory are mainly applied to induction motors such as washing machine motor, air conditioner motor, pump motor, coil motor, three-phase motor, fan motor and compressor motor, etc.
Three Phase Automatic Stator Winding Machine SMT-DR450 ISO9001 / SGS 0
