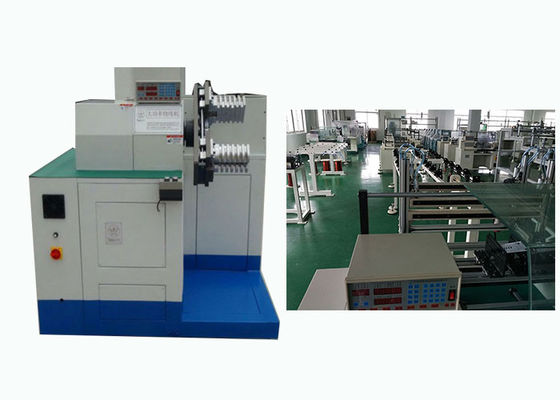

OEM / ODM Automatic Coil Winding Machine Around 1000pcs/8 hours

OEM / ODM Automatic Coil Winding Machine Around 1000pcs/8 hours

  • OEM / ODM Automatic Coil Winding Machine Around 1000pcs/8 hours
OEM / ODM Automatic Coil Winding Machine Around 1000pcs/8 hours
Product Details:
Place of Origin: China
Brand Name: SMT
Certification: ISO9001 / SGS
Model Number: SMT-R650
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box or You Can Tell Us.
Delivery Time: 29 - 38 days
Payment Terms: T/T, L/C
Supply Ability: 2pcs / 58 - 69 days
Contact Now
Detailed Product Description
Name: Automatic Coil Winding Machine For Chinese Generator Manufacturer Demoulding: Half-Automatic
Transfer Number: 2-6pcs Power Supply: 220V/50/60Hz 2.2Kw
Winding Head: 2pcs Wire Diameter: 0.4-1.2mm
Effective Length Of The Tooling: ≤411mm Wegiht: 979kg
OEM: Yes
High Light:

electric motor coil winding machine


ceiling fan winding machine


ODM Automatic Coil Winding Machine

OEM / ODM Automatic Coil Winding Machine Around 1000pcs/8 hours



Adopt Mitsubishi program controller and GOT, to achieve man-machine interaction, modifying and storing the winding parameter of stator Cam combination which has been calculated precisely assure the precise winding process. Fixed fixture and the structure of using protective sleeve to protect hooking wire assure hanging wire quickly, exactly and safely. Adopt stepping motor to assure stable and precise indexing. Adopt imported aluminum alloy frame.


(1) Main Technical Parameter


Model R650
Swing diameter ≤450mm
Effective length of the tooling ≤400mm
Parallel wire number ≤16pcs
Wire diameter 0.3-1.2mm
Wire arraying width 400mm
Power supply 220V/50/60Hz 2.2Kw
Machine weight 950kgs
Air Pressure 0.4-0.6MPa
Machine dimension (L)1500*(W)1700*(H)1550mm


(2) The operation steps of this machine

Production efficiency of this machine
Around 1000pcs/8 hours,it is only a rough idea, depends on the armature slots number and turn number.
Load armature on the shuttle manually, press START button,shuttle will deliver the armature to the winding position, and automatic winding, indexing and wire cutting,after completing, the shuttle will take out the finished armature from winding position, operator unload the finished armature, one cycle is completed.

(3) Machine Main function and Characteristic

Winding tooling: each machine has one set winding tooling and three vertical winding forms.
The whole set of tooling can be changed, and it takes about 15min.
The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
Allow three wires winding simultaneously.
Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
The working rotation speed can be set . Machine has no distinct vibration and noise.
Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.


(4) OEM/ODM Profile

Taking full advantage of experienced engineers, skillful professionals, perfect equipment, strict manufacturing process control and wide coverage service net-work, we are dedicated to provide our customers with the optimized solution to electric motor manufacturing. So far, except the big market share in China, we export out machines to the worldwide countries such as USA, Italy, Australia, India, Brazil, Mexico, Turkey, Thailand, Vietnam, Iran, etc, and our machines share the great reputation among customers for it durable, reliable performance, reasonable price and good after-service.


(5) Production Line Profile


With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.


(6) About Smart


Located in Suzhou, a beautiful city of industry, commerce heart in Yangtze River Delta, Smart is specialized in the R&D, manufacturing and sales of induction motor machinery. Our machines produced in Suzhou factory are mainly applied to induction motors such as washing machine motor, air conditioner motor, pump motor, coil motor, three-phase motor, fan motor and compressor motor, etc.
