|Name:||Stator Coil Winding Machine For Three-Phase Motor||Wire Speed:||≤3000r/min|
|Power Supply:||380v/50/60Hz 7Kw||Weight:||1100kg|
electric motor coil winding machine,
ceiling fan winding machine,
Precision Motor Winding Machine

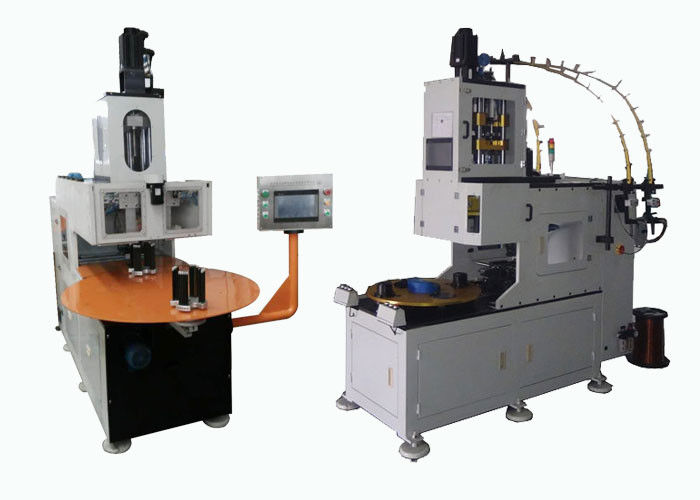

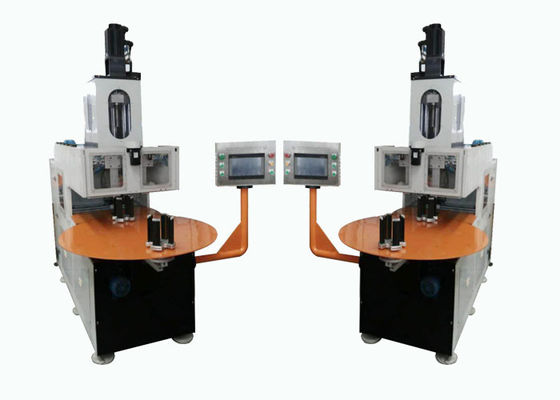

Precision Servo Induction Motor Winding Machine 380v 50Hz / 60Hz
1, Warranty Period: 1 year
2. Engineers available to service machinery overseas
(1) Main Technical Data
|SMT-LR100 SMT-LR150I SMT-LR150 II SMT_LR200||SMT-LR100||SMT-LR150|
|Winding Head||1 1 1 1||2||4|
|Wire Diameter(mm)||0.3~1.0 0.3~1.0 0.3~1.2 0.3~1.2 0.3~1.2||0.2~1.0||0.2~1.0|
|Unload Speed||≤2500r/min ≤2500r/min ≤2500r/min ≤2000r/min||3000||3000|
|Stack Height||≤80mm ≤120mm ≤150mm ≤230mm||≤70mm||≤70mm|
|Winding Precision||+ 0 + 0 + 0 + 0||+ 0||+ 0|
|Power Supply||380v/50/60HZ 8Kw 8Kw 9Kw||7Kw||7Kw|
|Air Pressure||≥0.6Mpa ≥0.6Mpa ≥0.6Mpa ≥0.6Mpa||≥0.6pa||≥0.6pa|
|Weight||≈1350Kg ≈1600Kg ≈1600Kg ≈2200Kg||≈1950Kg||≈2300Kg|
|180×110×200 180×120×220 180×130×230 220×180×250||180×130×205||135×100×180|
This machine is suitable for 2 poles, 4 poles and 6poles coils winding.
(3) Machine main function and characteristic
Winding tooling: each machine has one set winding tooling and three vertical winding forms.
The whole set of tooling can be changed, and it takes about 15min.
The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
Allow three wires winding simultaneously.
Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
The working rotation speed can be set . Machine has no distinct vibration and noise.
Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.
