Pump Motor Stator Winding Machine 4 Poles And 6Poles Coils Winding

Pump Motor Stator Winding Machine 4 Poles And 6Poles Coils Winding

    • Pump Motor Stator Winding Machine 4 Poles And 6Poles Coils Winding
    • Pump Motor Stator Winding Machine 4 Poles And 6Poles Coils Winding
  • Pump Motor Stator Winding Machine 4 Poles And 6Poles Coils Winding

    Product Details:

    Place of Origin: China
    Brand Name: SMT
    Certification: ISO9001/SGS/CE
    Model Number: SMT-LR100

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Wooden Case Suitable for Sea Transportation.
    Delivery Time: 37 - 45 days for 1set
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 2pcs/ 37 - 81 days
    Contact Now
    Detailed Product Description
    Name: Pump Motor Stator Coil Winding Machine / Stator Winding Machine Wire Speed: ≤3000r/min
    Transfer Number: 2-6pcs Power Supply: 380v/50/60Hz 7Kw
    Weight: 1100kg Dimension: (L)1800X(W)1100X2200mm
    Winding Head: 1pcs Max Stack Height: ≤70mm
    Mould Life: >1,000,000 Shots Automatic Grade: Full-Automatic
    High Light:

    ceiling fan coil winding machine


    electric motor coil winding machine

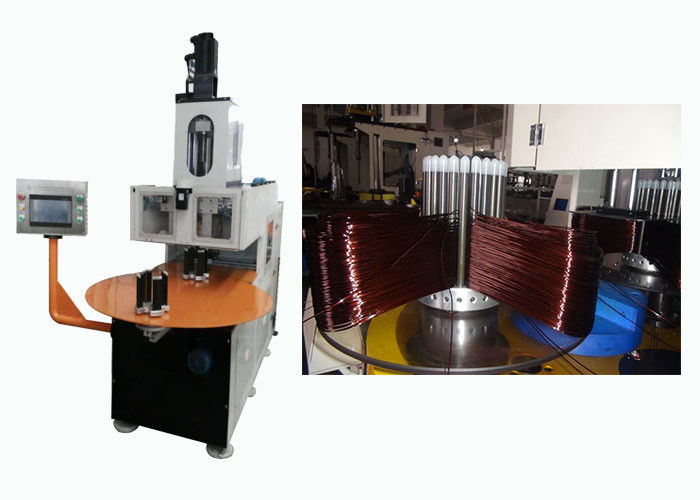

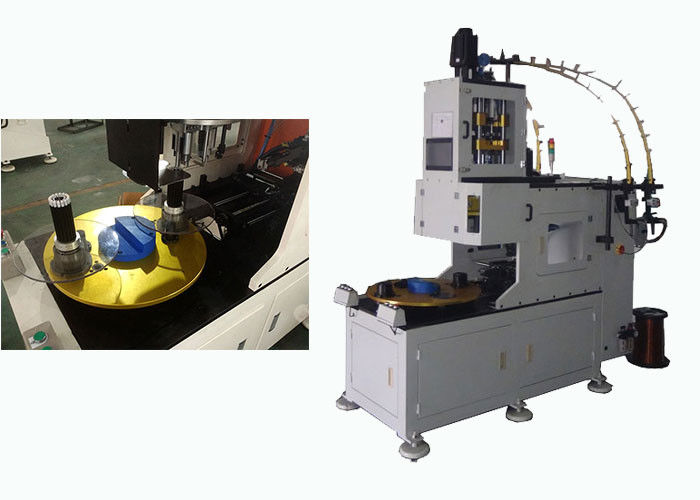

    Pump Motor Stator Winding Machine 4 Poles And 6Poles Coils Winding



    1. Six Spindles are controlled by servo motors.
    2. Double winding heads and four stations wind two phase coils at a time ,which can wind single and multiple wires .

    3. Vertical winding machine series wind coils directly and orderly into transfer cups .
    4. Main spindle, high speed mold dipping ,hooking and cutting wire, turntable and transfer cup index are all controlled by servo motors ,.
    5. It is especially suitable for the coil inserting of stator with high slot fill factor and slot openning .
    6. It saves labor and has high efficiency .


    (1) Main Technical Data


    SMT-LR100 SMT-LR150I SMT-LR150 II SMT_LR200 SLR70 QLR70
    Winding Head 1 1 1 1 2 4
    Wire Diameter(mm) 0.3~1.0 0.3~1.0 0.3~1.2 0.3~1.2 0.3~1.2 0.2~1.0 0.2~1.0
    Unload Speed ≤2500r/min ≤2500r/min ≤2500r/min ≤2000r/min 3000 3000
    Stack Height ≤80mm ≤120mm ≤150mm ≤230mm ≤70mm ≤70mm
    Winding Precision + 0 + 0 + 0 + 0 + 0 + 0
    Power Supply 380v/50/60HZ 8Kw 8Kw 9Kw 7Kw 7Kw
    Air Pressure ≥0.6Mpa ≥0.6Mpa ≥0.6Mpa ≥0.6Mpa ≥0.6pa ≥0.6pa
    Weight ≈1350Kg ≈1600Kg ≈1600Kg ≈2200Kg ≈1950Kg ≈2300Kg
    180×110×200 180×120×220 180×130×230 220×180×250 180×130×205 135×100×180


    (2) Application

    This machine is suitable for 2 poles, 4 poles and 6poles coils winding.

    (3) Machine main function and characteristic

    Winding tooling: each machine has one set winding tooling and three vertical winding forms.
    The whole set of tooling can be changed, and it takes about 15min.
    The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
    Allow three wires winding simultaneously.
    Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
    The working rotation speed can be set . Machine has no distinct vibration and noise.
    Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
    PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
    X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
    Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.


    (4) OEM/ODM Profile

    Taking full advantage of experienced engineers, skillful professionals, perfect equipment, strict manufacturing process control and wide coverage service net-work, we are dedicated to provide our customers with the optimized solution to electric motor manufacturing. So far, except the big market share in China, we export out machines to the worldwide countries such as USA, Italy, Australia, India, Brazil, Mexico, Turkey, Thailand, Vietnam, Iran, etc, and our machines share the great reputation among customers for it durable, reliable performance, reasonable price and good after-service.


    (5) Production Line Profile


    With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.


    (6) About Our Factory

    Located in Suzhou, a beautiful city of industry, commerce heart in Yangtze River Delta, Smart is specialized in the R&D, manufacturing and sales of induction motor machinery. Our machines produced in Suzhou factory are mainly applied to induction motors such as washing machine motor, air conditioner motor, pump motor, coil motor, three-phase motor, fan motor and compressor motor, etc.
