|Place of Origin:||China|
|Minimum Order Quantity:||1|
|Packaging Details:||Plastic warpped ,vacuum Packed in plywood case|
|Delivery Time:||41-65 days|
|Payment Terms:||L/C T/T|
|Supply Ability:||1 PCS 41-65 days|
|Name:||Fan / Pump Motor Stator Automatic Coil Inserting / Drift Machine||Stator I.D:||Dia 20~100|
|Stator .O.D:||Max 160mm||Core Length:||Max 120mm|
|Tooling Travel:||Max 70mm||Appropriate Wire:||Copper Wire And Aluminum Wire|
|Slot Number Range:||8~48 Slot||Weight:||About 850KG|
motor winding equipment,
induction motor winding machine

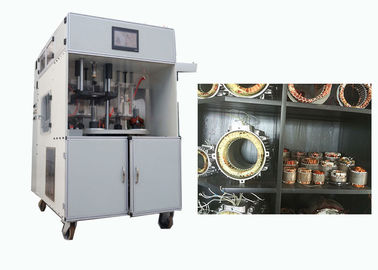

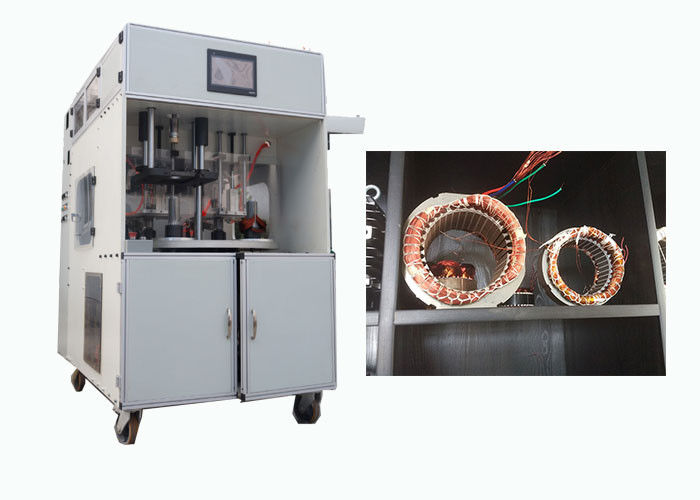

Fan / Pump Motor stator Automatic Stator Winding Machine Four-station Turntable
1.Machines offter automatic linear stator handling and simultaneous forming of both and turns
2. Quick, no hand tools, complete lamination tooling changeover .
3. All electric and pneumatic operation with no hydralics ( optional)
4. Automatic load / unload of stator ( optional )
Stator handling arms with or without cuff supports .
1. Our Service:
|Product Name||Automatic Winding and Inserting Machine||Application||Electric motor stator production|
|Warranty time||One year after machine(s) arrive in customer’s plant||Service||Overseas service center available|
2. Basic Parameters
1. Basic machine complete with controls, less tooling.
2. Heavy duty construction.
3. All electric and pneumatic - no hydraulics.
4. Machine enamel paint on request.
5. Allen Bradley Programmable Controller.
6. Compact design on wheels for ease of relocation and
7. Maximum stack height up to 4 inches, 102mm, with rapid
8. Four-station turntable.
9. Smooth precise sinusoidal turntable index.
10. Specification storage for use with the Windows compatible computer.
3. SOFTWARE FEATURES:
a) Specification storage of over 1,000 winding patterns.
b) One (1) minute specification change.
c) Upload/download to disk capability.
d) Machine diagnostics utilizing visual basic software and full access to servo software.
e) Machine functions independent of computer for reliability.
f) Easy menu access to all machine winding parameters.
g) Maintenance recording and access password protected.
h) Pre-programmed maintenance schedules with operator prompting.
4. About Us
Take full advantage of experienced engineers , skillful professional , perfect equipment , strict manufacturing process control and wide coverage service net-work , we are dedicated to provide our customers with the optimized solution to electric motor manufacturing , so far , except the big market share in China , we export our machines to the worldwide countries such as USA Italy , Australia , India , Brazil , Mexico ,Turkey , Tailand , Vietnam Iran etc,and our machines share the great the reputation among customers for its durable , reliable perormance , reasonable price and good after sales.
