SMT Automatic Winding Inserting And Drifting Machine for Motor Stator

SMT Automatic Winding Inserting And Drifting Machine for Motor Stator

  • High Light

    automatic motor winding machine

    ,

    induction motor winding machine

  • Name
    Suzhou SMT Automatic Winding Inserting Drift Machine For Motor Stator
  • Stator I.D
    Dia 20~100
  • Stator .O.D
    Max 160mm
  • Core Length
    Max 120mm
  • Tooling Travel
    Max 70mm
  • Appropriate Wire
    Copper Wire And Aluminum Wire
  • Slot Number Range
    8~48 Slot
  • Power Supply
    380V/50/60HZ 3KW
  • Place of Origin
    China
  • Brand Name
    SMT
  • Certification
    ISO/SGS Audit
  • Model Number
    SMT-I
  • Minimum Order Quantity
    1
  • Price
    Negotiable
  • Packaging Details
    Plastic warpped ,vacuum Packed in plywood case
  • Delivery Time
    41-66 days
  • Payment Terms
    L/C T/T
  • Supply Ability
    1 PCS 41-66 days

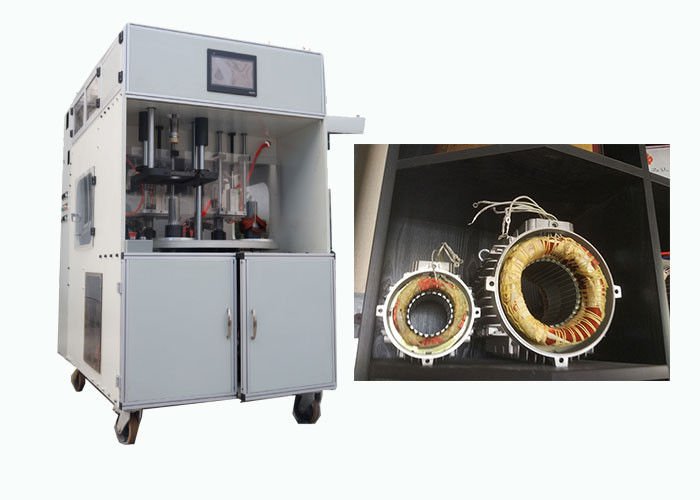

SMT Automatic Winding Inserting And Drifting Machine for Motor Stator

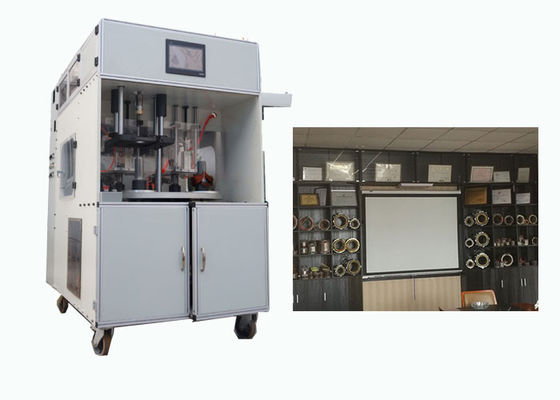

SMT Automatic Winding Inserting And Drifting Machine for Motor Stator





1. Machines offter automatic linear stator handling and simultaneous forming of both and turns
2. Quick, no hand tools, complete lamination tooling changeover .
3. All electric and pneumatic operation with no hydralics ( optional)
4. Automatic load / unload of stator ( optional )
Stator handling arms with or without cuff supports .



1. Our Service:



Product Name Automatic Winding and Inserting Machine Application Electric motor stator production
Status New Paint On request
Warranty time One year after machine(s) arrive in customer’s plant Service Overseas service center available



2. Basic Parameters



1. Basic machine complete with controls, less tooling.
2. Heavy duty construction.
3. All electric and pneumatic - no hydraulics.
4. Machine enamel paint on request.
5. Allen Bradley Programmable Controller.
6. Compact design on wheels for ease of relocation and
operator convenience.
7. Maximum stack height up to 4 inches, 102mm, with rapid
adjust feature.
8. Four-station turntable.
9. Smooth precise sinusoidal turntable index.
10. Specification storage for use with the Windows compatible computer.



3. SOFTWARE FEATURES:
a) Specification storage of over 1,000 winding patterns.
b) One (1) minute specification change.
c) Upload/download to disk capability.
d) Machine diagnostics utilizing visual basic software and full access to servo software.
e) Machine functions independent of computer for reliability.
f) Easy menu access to all machine winding parameters.
g) Maintenance recording and access password protected.
h) Pre-programmed maintenance schedules with operator prompting.

SMT Automatic Winding Inserting And Drifting Machine for Motor Stator 0

4. About Us

Take full advantage of experienced engineers , skillful professional , perfect equipment , strict manufacturing process control and wide coverage service net-work , we are dedicated to provide our customers with the optimized solution to electric motor manufacturing , so far , except the big market share in China , we export our machines to the worldwide countries such as USA Italy , Australia , India , Brazil , Mexico ,Turkey , Tailand , Vietnam Iran etc,and our machines share the great the reputation among customers for its durable , reliable perormance , reasonable price and good after sales.
