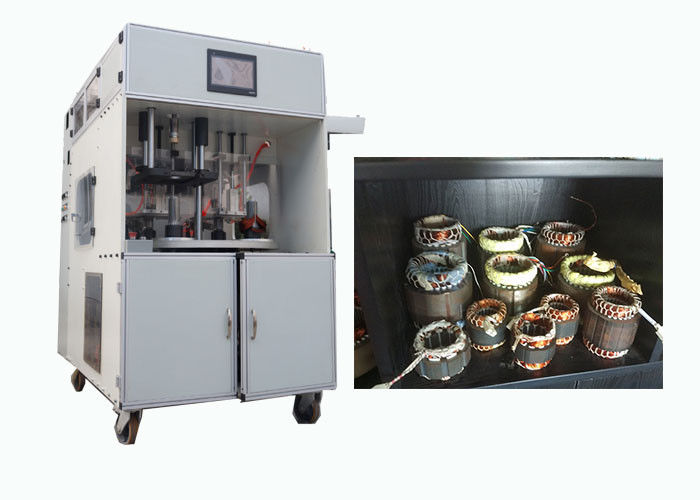

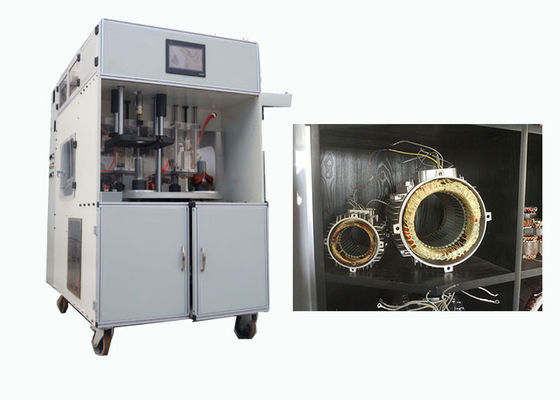

    Full - Automatic Winding Inserting And Drift Machine For Motor Stator
  • Stator I.D
    Dia 20~100
  • Stator .O.D
    Max 160mm
  • Core Length
    Max 120mm
  • Tooling Travel
    Max 70mm
  • Appropriate Wire
    Copper Wire And Aluminum Wire
  • Slot Number Range
    8~48 Slot
  • Power Supply
    380V/50/60HZ 3KW
  • Place of Origin
  • Brand Name
  • Certification
    ISO/SGS Audit
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    Plastic warpped ,vacuum Packed in plywood case
  • Delivery Time
    41-66 days
  • Payment Terms
    L/C T/T
  • Supply Ability
    1 PCS 41-66 days

Full - Automatic WindingInserting And Drifting Machine for Motor Stator

Full - Automatic WindingInserting And Drifting Machine for Motor Stator



1. Servo wedge material feed with variable length capability.
2. Fast threading wedgemaker and material dereeling included.
3. Wedge material depletion sensor with automatic restart.
4. Rapid stack height adjustment of insert station with quickchange spacers.
5. Two stage coil injection for high slot fill requirements.
6. Automatic overload shutdown of coil injector.
7. Automatic stator gauge tool with bad core sensing.
8. Full single button reset to home position, for ease of operation.
9. Guarded for operation protection with infra-red light curtain.
10. Safety interlocked door guards.


1. Our Service:


Product Name Automatic Winding and Inserting Machine Application Electric motor stator production
Status New Paint On request
Warranty time One year after machine(s) arrive in customer’s plant Service Overseas service center available


2. Basic Parameters


1. Basic machine complete with controls, less tooling.
2. Heavy duty construction.
3. All electric and pneumatic - no hydraulics.
4. Machine enamel paint on request.
5. Allen Bradley Programmable Controller.
6. Compact design on wheels for ease of relocation and
operator convenience.
7. Maximum stack height up to 4 inches, 102mm, with rapid
adjust feature.
8. Four-station turntable.
9. Smooth precise sinusoidal turntable index.
10. Specification storage for use with the Windows compatible computer.


a) Specification storage of over 1,000 winding patterns.
b) One (1) minute specification change.
c) Upload/download to disk capability.
d) Machine diagnostics utilizing visual basic software and full access to servo software.
e) Machine functions independent of computer for reliability.
f) Easy menu access to all machine winding parameters.
g) Maintenance recording and access password protected.
h) Pre-programmed maintenance schedules with operator prompting.
