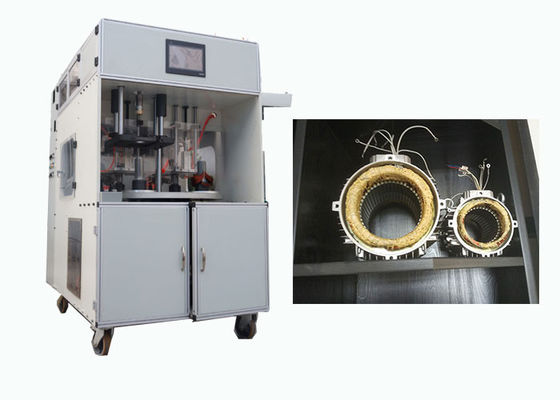

Name: Automatic Linear Stator Handling And Simultaneous Forming Machine Stator I.D: Dia 20~100
Stator .O.D: Max 160mm Core Length: Max 120mm
Tooling Travel: Max 70mm Appropriate Wire: Copper Wire And Aluminum Wire
Slot Number Range: 8~48 Slot Power Supply: 380V/50/60HZ 3KW
High Light:

motor winding equipment

,

induction motor winding machine

Electric Induction Motor Automatic Winding inserting Drift Forming System





1.Machines offter automatic linear stator handling and simultaneous forming of both and turns
2. Quick, no hand tools, complete lamination tooling changeover .
3. All electric and pneumatic operation with no hydralics ( optional)
4. Automatic load / unload of stator ( optional )
Stator handling arms with or without cuff supports .
5.it is electircally and pneumatically controlled with no hydraulics . this system features automatic winding and stator handling , downloaded specification and simple quick lamination tooling changeover .



1. Our Service:



Product Name Automatic Winding and Inserting Machine Application Electric motor stator production
Status New Paint On request
Warranty time One year after machine(s) arrive in customer’s plant Service Overseas service center available



2.Basic Parameters



1.Basic machine complete with controls, less tooling.
2.Heavy duty construction.
3.All electric and pneumatic - no hydraulics.
4.Machine enamel paint on request.
5.Allen Bradley Programmable Controller.
6.Compact design on wheels for ease of relocation and
operator convenience.
7.Maximum stack height up to 4 inches, 102mm, with rapid
adjust feature.
8.Four-station turntable.
9.Smooth precise sinusoidal turntable index.
10.Specification storage for use with the Windows compatible computer.



3.SOFTWARE FEATURES:
a) Specification storage of over 1,000 winding patterns.
b) One (1) minute specification change.
c) Upload/download to disk capability.
d) Machine diagnostics utilizing visual basic software and full access to servo software.
e) Machine functions independent of computer for reliability.
f) Easy menu access to all machine winding parameters.
g) Maintenance recording and access password protected.
h) Pre-programmed maintenance schedules with operator prompting.


11.Maximum flyer speed up to 3,500 RPM, fully closed loop and tied to coilform jump for crossover and turn count control.
12.Capable of variable speed, either step to step or slow to jump for ± 0 turn count.
13.Capable of pulling up to two (2) #19 AWG, 0.95mm, wires in parallel (may be different sizes.)
14.Variable wire tension control.
15.Includes wire feeds from machine to wire spools. Customer to specify either ceramic eyelets or spring lined plastic tubing.
16.Fully electronically adjustable turn count, coilform jump, upper tooling index, and lead length control from the computer specification routine.

Automatic Linear Stator Handling And Simultaneous Forming Machine 0
