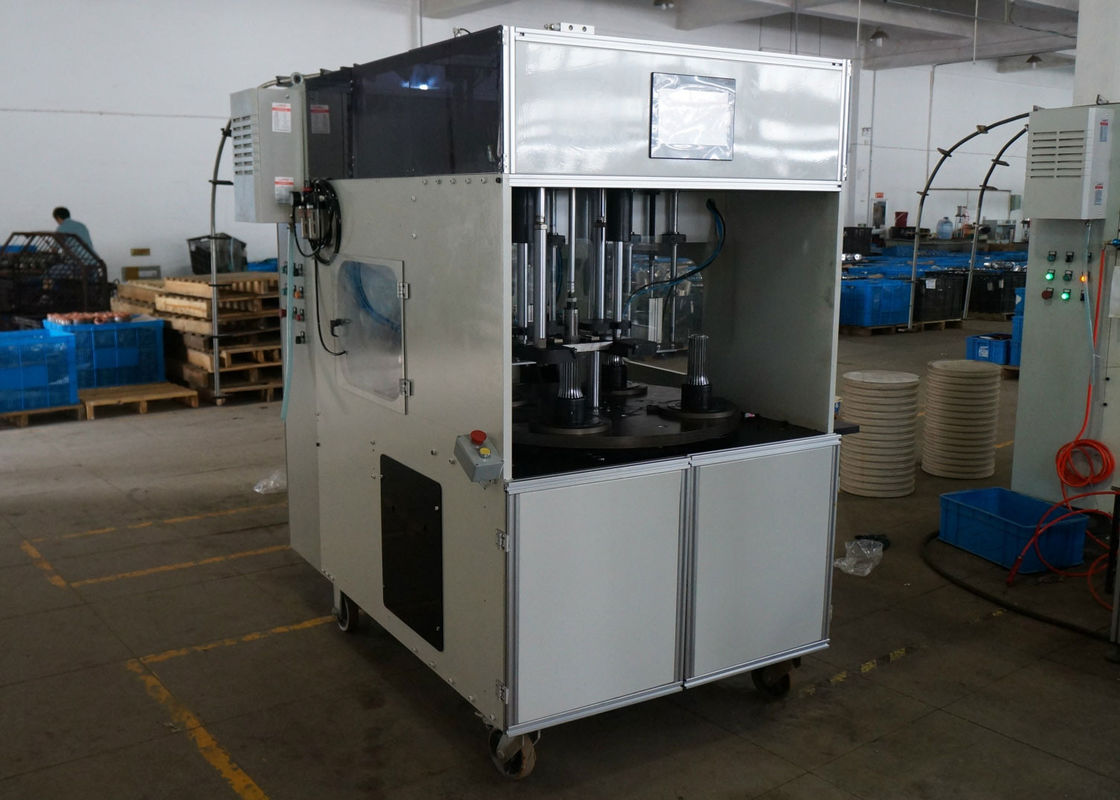

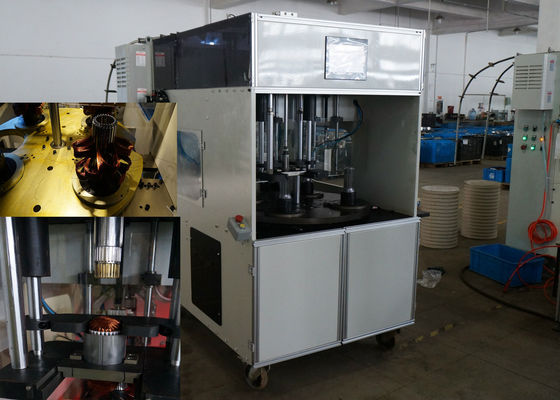

Automatic Winding Machine Fitted Around inserting Machine For Pumps / Air Compressors
This series is designed for embedded line stator winding design, set routing, system groove deed, embedding in a machine; automatic coil winding stations are arranged neatly fitted into the mold line, effectively avoid the artificial hanging wire coil caused by cross clutter caused by embedded line break, line hurt, hurt the film with the aircraft detection alarm function, it is one of the characteristics of the aircraft; embedding station by a servo embedded line, pushing the line, pushing paper height and other parameters can be set freely on the touch screen.
1. Our Service:
| Product Name | Automatic Winding and Inserting Machine | Application | Electric motor stator production |
| Status | New | Paint | On request |
| Warranty time | One year after machine(s) arrive in customer’s plant | Service | Overseas service center available |
2. Basic Parameters
1. Basic machine complete with controls, less tooling.
2. Heavy duty construction.
3. All electric and pneumatic - no hydraulics.
4. Machine enamel paint on request.
5. Allen Bradley Programmable Controller.
6. Compact design on wheels for ease of relocation and
operator convenience.
7. Maximum stack height up to 4 inches, 102mm, with rapid
adjust feature.
8. Four-station turntable.
9. Smooth precise sinusoidal turntable index.
10. Specification storage for use with the Windows compatible computer.
3. SOFTWARE FEATURES:
a) Specification storage of over 1,000 winding patterns.
b) One (1) minute specification change.
c) Upload/download to disk capability.
d) Machine diagnostics utilizing visual basic software and full access to servo software.
e) Machine functions independent of computer for reliability.
f) Easy menu access to all machine winding parameters.
g) Maintenance recording and access password protected.
h) Pre-programmed maintenance schedules with operator prompting.
11. Maximum flyer speed up to 3,500 RPM, fully closed loop and tied to coilform jump for crossover and turn count control.
12. Capable of variable speed, either step to step or slow to jump for ± 0 turn count.
13. Capable of pulling up to two (2) #19 AWG, 0.95mm, wires in parallel (may be different sizes.)
14. Variable wire tension control.
15. Includes wire feeds from machine to wire spools. Customer to specify either ceramic eyelets or spring lined plastic tubing.
16. Fully electronically adjustable turn count, coilform jump, upper tooling index, and lead length control from the computer specification routine.
