Detailed Product Description

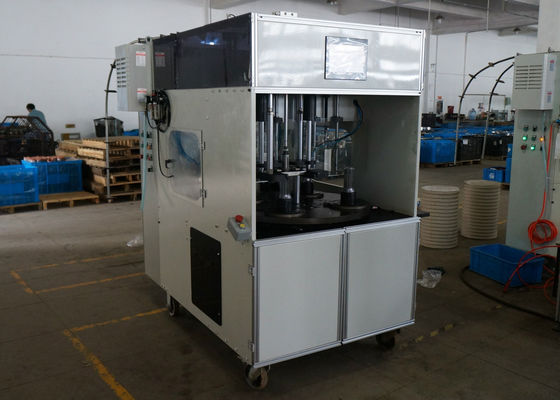

Name: Automatic Winding Machine Fitted Around The Inserting Machine For Pumps / Air Compressors Stator I.D: Dia 20~100
Stator .O.D: Max 160mm Appropriate Wire: Copper Wire And Aluminum Wire
Power Supply: 380V/50/60HZ 3KW Size: 2335mm×1300mm×2280mm
Weight: 1160kg Color: White/Orange
High Light:

automatic motor winding machine


motor winding equipment

Inserting And Drifting Machine Copper Wire And Aluminum Wire




Automatic armature winding machine is used for automatically hook type commutator armature winding, it is suitable for winding medium and big wire diameter armature.

Competitive advantages:
This machine can be equipped with an automatic feeding device to achieve a fully automatic operation. PLC and touch screen control. Double winding flyer, four tension is settable.


1. Our Service:


Product Name Automatic Winding and Inserting Machine Application Electric motor stator production
Status New Paint On request
Warranty time One year after machine(s) arrive in customer’s plant Service Overseas service center available


2. Basic Parameters


1. Basic machine complete with controls, less tooling.
2. Heavy duty construction.
3. All electric and pneumatic - no hydraulics.
4. Machine enamel paint on request.
5. Allen Bradley Programmable Controller.
6. Compact design on wheels for ease of relocation and
operator convenience.
7. Maximum stack height up to 4 inches, 102mm, with rapid
adjust feature.
8. Four-station turntable.
9. Smooth precise sinusoidal turntable index.
10. Specification storage for use with the Windows compatible computer.


a) Specification storage of over 1,000 winding patterns.
b) One (1) minute specification change.
c) Upload/download to disk capability.
d) Machine diagnostics utilizing visual basic software and full access to servo software.
e) Machine functions independent of computer for reliability.
f) Easy menu access to all machine winding parameters.
g) Maintenance recording and access password protected.
h) Pre-programmed maintenance schedules with operator prompting.

11. Maximum flyer speed up to 3,500 RPM, fully closed loop and tied to coilform jump for crossover and turn count control.
12. Capable of variable speed, either step to step or slow to jump for ± 0 turn count.
13. Capable of pulling up to two (2) #19 AWG, 0.95mm, wires in parallel (may be different sizes.)
14. Variable wire tension control.
15. Includes wire feeds from machine to wire spools. Customer to specify either ceramic eyelets or spring lined plastic tubing.
16. Fully electronically adjustable turn count, coilform jump, upper tooling index, and lead length control from the computer specification routine.


4. About Us

Take full advantage of experienced engineers , skillful professional , perfect equipment , strict manufacturing process control and wide coverage service net-work , we are dedicated to provide our customers with the optimized solution to electric motor manufacturing , so far , except the big market share in China , we export our machines to the worldwide countries such as USA Italy , Australia , India , Brazil , Mexico ,Turkey , Tailand , Vietnam Iran etc,and our machines share the great the reputation among customers for its durable , reliable perormance , reasonable price and good after sales.
