Four Heads Full Automatic Stator Winding Machine CNC Displayer 0.2 -1.0 MM Wire Diameter
  • name
  • name

Four Heads Full Automatic Stator Winding Machine CNC Displayer 0.2 -1.0 MM Wire Diameter

MOQ: 1 Set
Price: Negotiable
Standard Packaging: Wooden Case Suitable for Sea Transportation.
Delivery Period: 45 - 55 days for 1set
Payment Method: T/T, L/C
Supply Capacity: 1pcs/ 45 - 55 days
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
SMT
Certification
ISO9001/SGS/CE
Model Number
SMT- QLR70
Name:
Automatic Stator Coil Winding Machine AC / DC Electrical Series Motor
Wire Speed:
≤3000r/min
Weight:
2300kg
Condition:
New
Warranty:
12 Months
Winding Head:
8pcs
Max Stack Height:
≤70mm
Mould Life:
>1,000,000 Shots
Automatic Grade:
Full-Automatic
OEM:
Yes
Highlight:

ceiling fan coil winding machine

,

electric motor coil winding machine

,

Four Heads Stator Winding Machine

Product Description

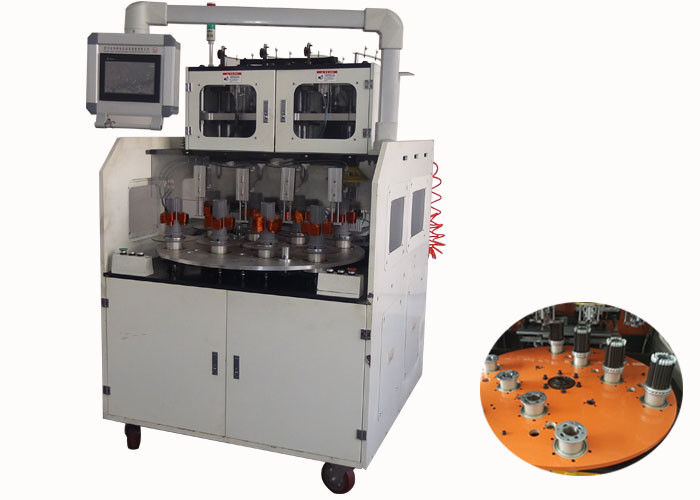

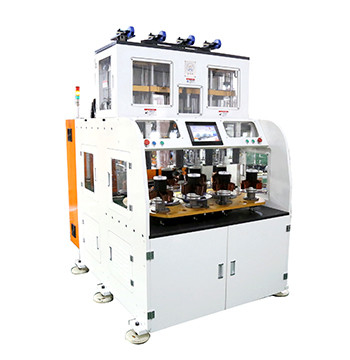

Four Heads Full Automatic Stator Winding Machine CNC Displayer 0.2 -1.0 MM Wire Diameter



With four winding heads and 8 stations, the machine winds coils directly and orderly into transfer cup, which is controlled by six servo motors. It is especially suitable for the coil inserting of stator with high slot fill factor and small slot opening width.

1. A kind of four-head and eight-stations automatic winding machine;
2. automatic put the coil into transfer orderly;
3. especially suitable for high slot filling rate, small notch stator; winding mode such as automatic skip, automatic cutting and automatic indexing can be set in human-machine interface, winding tension is adjustable.



 Main Technical Data



Model QLR70
Winding Head 4
Wire Diameter Φ0.2-Φ1.0mm
Stack height ≤70mm
Unload speed ≤3000r/min
Winding precision ±0
Air pressure ≥0.6Mpa
Power supply 7Kw
MOQ 1
Certification ISO9001 SGS


 Application of stator coil winding machine

This Automatic Eight Working Station Induction Motor Stator Coil Winding machine is suitable for 2 poles. 4 poles, 6 poles motor stator coils winding.


 Machine main function and characteristic

This automatic induction motor stator coil winding machine has four winding heads and eight operation stations. High efficiency is its feature. The machine automatically put the coil into transfer former orderly, especially suitable for high production capacity requirement, high slot filling rate, small slot opening stator coil winding. Winding mode, such as auto skip, auto cutting and auto indexing could be completed at a time successively; Parameter could be set in human-machine interface.
Continuous/discontinues winding way and meets the 2 poles. 4 poles, 6 poles coils winding.

Four Heads Full Automatic Stator Winding Machine CNC Displayer 0.2 -1.0 MM Wire Diameter 0
