|Name:||ISO / BV / SGS Audited AC Motor Coil Winding / Copper Wire Coiling Machine||Model:||SMT-R550|
|Wire Dia. Max:||Φ1.5mm||Wire Dia. Min:||Φ0.2mm|
|Winding Speed:||1200 RPM||Machine Size:||(L)1550×(W)1250×(H)1550mm|
electric motor coil winding machine,
ceiling fan winding machine,
AC Motor Copper Wire Coiling Machine

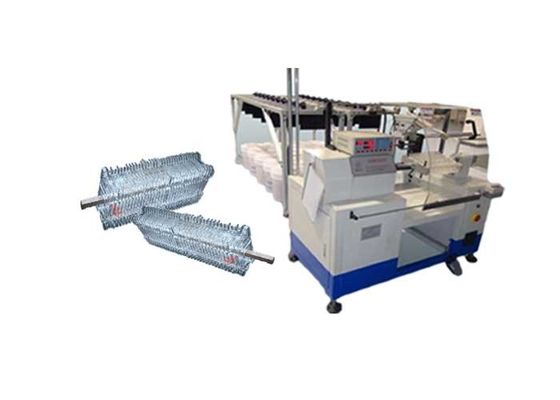

ISO / BV / SGS Audited AC Motor Coil Winding / Copper Wire Coiling Machine SMT-R550
Equipped with 1 - 3pcs winding head, which can wind 3 group coils at one time automatically and orderly. Comapred with other auto winding machines, this kind of machine is simpler and cheaper which is convenient for maintenance. Operator need to unload coils manually. It's suitable for bigger size motor stators.
(1) Technical Parameters
|Winding form diameter||≤550mm|
|Parallel wire no.||≤16pcs|
|Unload winding speed||≤1200r/min|
|Power supply||220V/50/60Hz 1.5Kw|
(2) Brief Instruction of Machine
Machine "ISO / BV / SGS Audited AC Motor Coil Winding / Copper Wire Coiling Machine" is mainly used for winding electric wires to the winding tools automatically and orderly to make stator coils.
Operators need to unload the coils by manual while it's easy to repair with low cost if happens with faults.
(3) Main Specifications
1. This machine is specially designed for multiple wire even with more parallel coils winding, such as alternator motor, servo motor and three phase motor.
2. The machine adopts special purpose controller which could set the function of arraying direction, winding start point, slow starting, slowing ending, sides stop, auto width, auto reset, etc.
3. The machine can be equipped with automatic through-sleeve device.
We're dedicated to developing and producing machinery / equipment for electric motors production, such as Winding machine, Coil Inserting Machine, etc.
Design & manufacturing are according to standard idea and customer's request. For example, mahcine out-look, color, components brand and so on, all can be specilized if customer has special request. Besides, we can help to design the layout of machines of customer site when necessary.
Our engineers will provide customer with technical support. Within one year warranty period, some technical support and some parts need to replace will be for free. Overseas after-service is also available. If customer meet problems and need our technicans be their site, our after-sales engineers will be at customer's site sonnest.
We are in a safe, professional and efficient service concept of "wisdom and humanity towards the direction of development, technology and the world simultaneously with the progress", to meet different needs of customers to create a brilliant career.
(5) Production Line Service
With excellent after-service, professional engineers and high quality, SMT provide customer with various kinds of equipments for electric motors production. It can be one set machine or the whole prodcution line from winding process to final forming process.
So if customer wants the whole production line, we can provide manufacturing technical consulting service and turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training, even complete turn-key project.
