Automatic Electric Wire Coil Stator Winding Machine SMT-R160 1 - 8 pcs Winding head

Automatic Electric Wire Coil Stator Winding Machine SMT-R160 1 - 8 pcs Winding head

  • High Light

    ceiling fan coil winding machine

    ,

    electric motor coil winding machine

    ,

    Electric Wire Coil Stator Winding Machine

  • Machine
    Automatic Electric Wire Coil Winding Machine
  • Model
    R160
  • Winding Head
    1 - 8 Pcs
  • Wire Diameter
    Φ0.1mm~Φ1.0mm
  • Transfer Distance
    ≤170mm
  • Weight
    ≈550Kg
  • Place of Origin
    China
  • Brand Name
    SMT
  • Certification
    ISO / BV / SGS
  • Model Number
    R160
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Coil Winding Machine is packaged with plywood cases. Its dimension is decided according to machine and some parts need to be packaged together.
  • Delivery Time
    30-42 days after advance payment
  • Payment Terms
    T/T, L/C
  • Supply Ability
    19 Set/Sets per Month

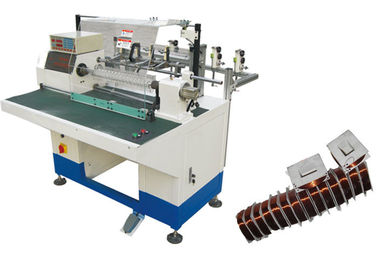

Automatic Electric Wire Coil Stator Winding Machine SMT-R160 1 - 8 pcs Winding head

Semi-auto Washing Machine Motors Coil Winding Machine with Simple Structure SMT-R160





1. Suitable for multi-connected and multi layer winding .
2. Wind 1-8 coils simultaneously at a time .
3 Automatic slot change, starting winding position , idling start ,double-ended stop,automatic reset and automatic start could be set in control system . .
4.There are two alternate spindles to facilitate higher output
5. Apply to all kinds of micro motors such as fan motor , pump motor , air conditioner motor , three phase machine motor .
6. It is suitable for winding coils of micro and special electric motor.



(1) Technical Parameters



Model SMT-R160
Wire diameter Φ0.1mm~Φ1.0mm
Winding form diameter ≤Φ220mm
Winding head 1-8
Transfer distance ≤170mm
Max. rotation speed 3200r/min
Air pressure ≥0.4MPa
Power supply 220V/50/60Hz 0.75Kw
Weight ≈550Kg
Dimension (L)1550×(W)1250×(H)1300mm



(2) Brief Instruction of Machine



Machine "Semi-auto Washing Machine Motors Coil Winding Machine with Simple Structure" is used for winding electric wires to several coils in the winding form automatically and orderly.

Operators need to unload the coils by manual. It is especially suitable for winding coils of micro and special electric motor.



(3) Main Specifications



1. It’s suitable for multi-connected and multi-layer winding;

2. Wind 1-8 coils simultaneously at a time;

3. Automatic slot change, starting winding position, idling start, idling stop, double-ended stop, automatic reset and automatic start could be set in the specialized controller;

4. There are two alternate spindles to facilitate higher output;

5. It can be applied to all kinds of micro motors such as fan motor, pump motor, air conditioner motor, three-phase motor, etc.



(4) Services



We're dedicated to developing and producing machinery / equipment for electric motors production, such as Winding machine, Coil Inserting Machine, etc.

Design & manufacturing are as customer's request. For example, shape design, components brand and machine color,etc. can be specilized if customer has special request. Moreover, we can help to arrange the layout of machines of customer site when necessary.

Our engineers will provide customer with technical support. Within one year warranty period, some technical support and some parts need to replace will be for free. Overseas after-service is also available. If customer needs our help, our after-sales engineers will be at customer's site within the shortest time.

We are in a safe, professional and efficient service concept of "wisdom and humanity towards the direction of development, technology and the world simultaneously with the progress", to meet different needs of customers to create a brilliant career.



(5) Production Line Service



With excellent after-service, professional engineers and high quality, SMT provide customer with various kinds of equipments for electric motors production. It can be one set machine or the whole prodcution line from winding process to final forming process.

So if customer wants the whole production line, we can provide manufacturing technical consulting service and turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training, even complete turn-key project.
