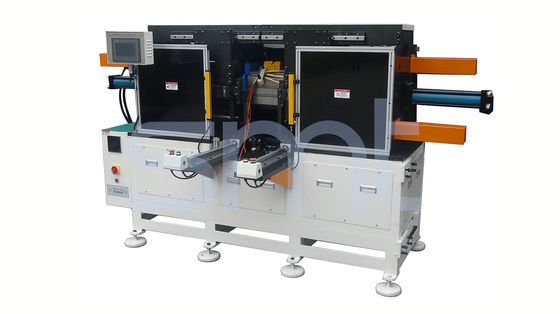

Stator Coil Final Winding Shaping Forming Machine SMT - ZJ300 Stator Coil Winding Machine

Stator Coil Final Winding Shaping Forming Machine SMT - ZJ300 Stator Coil Winding Machine

  • High Light

    Stator Coil Winding Machine

    ,

    electric motor winding equipment

  • Name
    Stator Coil Final Winding Shaping Forming Machine
  • Model
    ZJ300
  • Stator I.D.
    110-210mm
  • Stator O.D.
    ≤300mm
  • Machine Dimension (LxWxH)
    L3726x W1251 X H2111mm
  • Displacement Of Cylinder
    40L
  • After-sales Service
    Overseas Service Available
  • Place of Origin
    China
  • Brand Name
    SMT
  • Certification
    ISO / SGS Audit
  • Model Number
    SMT - ZJ300
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Plywood Box With a Plastic Bag.
  • Delivery Time
    40 - 89 days
  • Payment Terms
    T/T , L/C
  • Supply Ability
    1pcs / 40 - 75 days

Stator Coil Final Winding Shaping Forming Machine SMT - ZJ300 Stator Coil Winding Machine

Stator Coil Final Winding Shaping forming Machine SMT - ZJ300





(1) Main Technical Date



Model ZJ300
Stack height 70- 250mm
Stator I.D 110-210mm
Stator O.D ≤300mm
Displacement of cylinder 40L
Power supply 380V/50/60Hz 4.2Kw
Machine weight About 2300kg
Machine dimension (LxWxH) L3726x W1251 x H2111mm



(2) Application


This machine is suitable for air conditioner motor, washing machine motor, compression motor, fan motor, generator motor, pump motor, single phase and three phase induction motor.



Focusing on international trading, we have placed our priority on both product quality and service, which are the key elements that make your brand more competitive in the global market. If you are looking for machines, components, or OEM products, SMT motor Equipment will be your most reliable partner.

We are ready to establish a long business relationship with your esteemed company as a supplier, a partner and a friend. We warmly welcome you from worldwide.


(3) Machine Main Characteristic



This machine adopts whole hydraulic system and PCL program.

This machine can adjust the forming stack length by changing washer.

Both slot paper and wedge should not be damaged or turned over. The stator should not be deformation or stator lamination should not be upward. There is no wire enamel broken.

Production capacity ≤13s/set (exclude loading/unloading time)

Primary qualification rate ≥99.5%, after rework, the rate ≥99.9%

This machine adopts safety grating protection system. Operator need to stand when operating.

Machine adopts two hands simultaneously start button to ensure safety.

Efficiency stator coil forming machine,stator coil forming machine,coil forming machine work,coil forming machine used



(4) OEM/ODM



Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.



(5) Production Line Profile



With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

Stator Coil Final Winding Shaping Forming Machine SMT - ZJ300 Stator Coil Winding Machine 0

(6) About Us



Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
