Electrical Motor Stator Coil Winding Machine for Wire Middle Forming / Shaping

Electrical Motor Stator Coil Winding Machine for Wire Middle Forming / Shaping

  • High Light

    Stator Coil Winding Machine

    ,

    electric motor winding equipment

  • Name
    Automatic Motor Stator Metal Wire Final Forming Machine
  • Model
    ZJ160
  • Stator I.D.
    31 -101mm
  • Color
    White/Blue
  • Machine Size
    Middle Size
  • Automation Type
    Full Automation
  • Port
    Shanghai
  • Place of Origin
    China
  • Brand Name
    SMT
  • Certification
    ISO / SGS Audit
  • Model Number
    SMT - ZJ160
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Plywood Box with your requirement.
  • Delivery Time
    43-75 days
  • Payment Terms
    T/T , L/C
  • Supply Ability
    1pcs / 43-60 days

Electrical Motor Stator Coil Winding Machine for Wire Middle Forming / Shaping

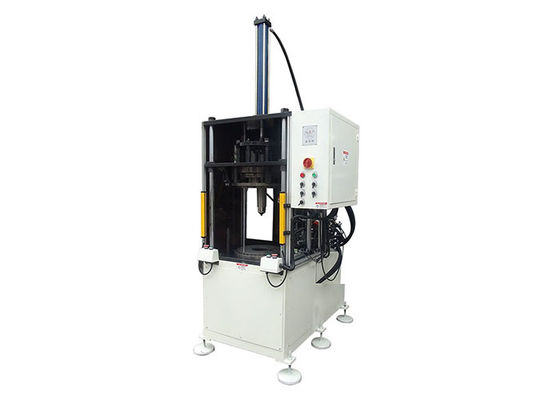

Coil Forming Machine Automatic Motor Stator Metal Wire SMT - ZJ160





Stator Winding Middle Forming Machine is driven by hydraulic system; PLC programming;individual guard teeth in each slot settles fied wire and jump wire to ensure the reliability of electrical leakage distance; whole schematic design of inner expansion, outer wrapping and edge forming ensures appropriate winding outside dimension. Middle forming is done after winding inserting but before winding lacing.

(1) Main Technical Features



Model ZJ160
Stator I.D. 31 -101mm
Stator O.D. ≤160mm
Stack Height 16-100mm
Displacement of cylinder ≤20F
MOQ 1 Set Mid - Forming Machine
Power Supply 380V/50/60Hz 3.75Kw
Weight 1000kgs
Machine dimension (L)1200*(W)750*(H)2500



(2) Application



The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.

Focusing on international trading, we have placed our priority on both product quality and service, which are the key elements that make your brand more competitive in the global market. If you are looking for machines, components, or OEM products, SMT motor Equipment will be your most reliable partner.

We are ready to establish a long business relationship with your esteemed company as a supplier, a partner and a friend. We warmly welcome you from worldwide.


(3) Machine Main Characteristic



This machine adopts whole hydraulic system and PCL program.

This machine can adjust the forming stack length by changing washer.

Both slot paper and wedge should not be damaged or turned over. The stator should not be deformation or stator lamination should not be upward. There is no wire enamel broken.

Production capacity ≤13s/set (exclude loading/unloading time)

Primary qualification rate ≥99.5%, after rework, the rate ≥99.9%

This machine adopts safety grating protection system. Operator need to stand when operating.

Machine adopts two hands simultaneously start button to ensure safety.

Efficiency stator coil forming machine,stator coil forming machine,coil forming machine work,coil forming machine used

Electrical Motor Stator Coil Winding Machine for Wire Middle Forming / Shaping 0

(4) OEM/ODM



Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.



(5) Production Line Profile



With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.



(6) About Us



Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
