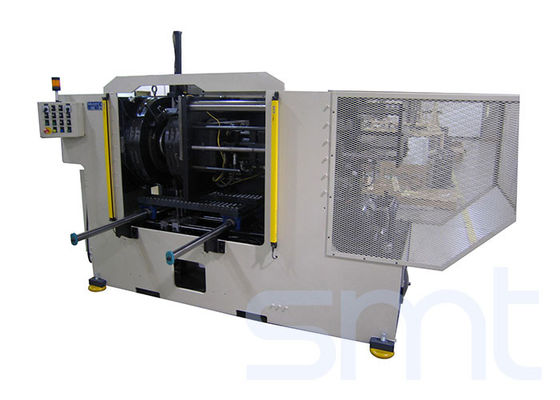

Induction Motor Stator Coil Winding / Shaping / Forming Machine SMT - ZZ300

Induction Motor Stator Coil Winding / Shaping / Forming Machine SMT - ZZ300

  • Induction Motor Stator Coil Winding / Shaping / Forming Machine SMT - ZZ300
Induction Motor Stator Coil Winding / Shaping / Forming Machine SMT - ZZ300
Product Details:
Place of Origin: China
Brand Name: SMT
Certification: ISO / SGS Audit
Model Number: SMT - ZZ300
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box With a Plastic Bag.
Delivery Time: 40 - 89 days
Payment Terms: T/T , L/C
Supply Ability: 1pcs / 40 - 75 days
Contact Now
Detailed Product Description
Name: Induction Motor Stator Coil Winding Shaping And Forming Machine Model: ZZ300
Stator I.D.: 110-210mm Stator O.D.: ≤300mm
Stack Height: 16-100mm Machine Dimension (LxWxH): L3726x W1251 X H2111mm
Displacement Of Cylinder: 40L
High Light:

Stator Coil Winding Machine


electric motor winding equipment

Induction Motor Stator Coil Winding Shaping and Forming Machine SMT -ZZ300


It is applied to deep water pump motor and other various type of big dimension stator.


(1) Main Technical Date


Model ZJ300
Stack height 70- 250mm
Stator I.D 110-210mm
Stator O.D ≤300mm
Displacement of cylinder 40L
Power supply 380V/50/60Hz 4.2Kw
Machine weight About 2300kg
Machine dimension (LxWxH) L3726x W1251 x H2111mm


(2) Application

The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.

Focusing on international trading, we have placed our priority on both product quality and service, which are the key elements that make your brand more competitive in the global market. If you are looking for machines, components, or OEM products, SMT motor Equipment will be your most reliable partner.

We are ready to establish a long business relationship with your esteemed company as a supplier, a partner and a friend. We warmly welcome you from worldwide.

(3) Machine Main Characteristic


This machine adopts whole hydraulic system and PCL program.

This machine can adjust the forming stack length by changing washer.

Both slot paper and wedge should not be damaged or turned over. The stator should not be deformation or stator lamination should not be upward. There is no wire enamel broken.

Production capacity ≤13s/set (exclude loading/unloading time)

Primary qualification rate ≥99.5%, after rework, the rate ≥99.9%

This machine adopts safety grating protection system. Operator need to stand when operating.

Machine adopts two hands simultaneously start button to ensure safety.

Efficiency stator coil forming machine,stator coil forming machine,coil forming machine work,coil forming machine used


(4) OEM/ODM


Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.


(5) Production Line Profile


With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

Induction Motor Stator Coil Winding / Shaping / Forming Machine SMT - ZZ300 0
