Generator Stator Coil Forming Machine / Automatic Stator Coil Winding Machine

Generator Stator Coil Forming Machine / Automatic Stator Coil Winding Machine

  • Generator Stator Coil Forming Machine / Automatic Stator Coil Winding Machine
Generator Stator Coil Forming Machine / Automatic Stator Coil Winding Machine
Product Details:
Place of Origin: China
Brand Name: SMT
Certification: ISO / SGS Audit
Model Number: SMT - ZJ190
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box with sealing.
Delivery Time: 41 - 82 days
Payment Terms: T/T , L/C
Supply Ability: 1pcs / 39 - 82 days
Contact Now
Detailed Product Description
Name: Generator Stator Coil Forming Machine Model: ZJ190
Stator I.D.: 50-131mm Stator O.D.: ≤191mm
Stack Height: 16-100mm Power Supply: 380V/50/60Hz 3Kw
High Light:

Stator Coil Winding Machine

,

electric motor winding equipment

Generator Stator Coil Forming Machine / Automatic Stator Forming Machine

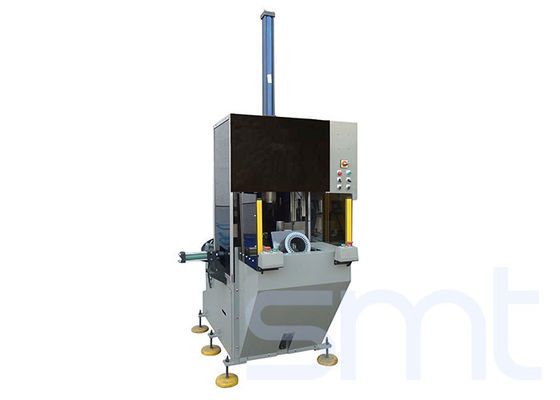

The machine is suitable for forming up the small to medium size stator coil; the operator put the on left side roller to form up inner side of coil, then put the stator on right side formiug mould to finally form up height, inner and outer side of coil to eusure the end product to meet the required specification.



(1) Main Technical Date



Model ZZ190
Stator I.D. 50-131mm
Stator O.D. ≤191mm
Stack Height 20-160mm
Displacement of cylinder 20F
MOQ 1 Coil Forming Machine
Power Supply 380V/50/60Hz Kw
Weight 1500kgs
Machine dimension (L)1950*(W)1100*(H)2500mm



(2) Application



The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.


(3) Machine Main Characteristic



This machine adopts whole hydraulic system and PCL program.

This machine can adjust the forming stack length by changing washer.

Both slot paper and wedge should not be damaged or turned over. The stator should not be deformation or stator lamination should not be upward. There is no wire enamel broken.

Production capacity ≤13s/set (exclude loading/unloading time)

Primary qualification rate ≥99.5%, after rework, the rate ≥99.9%

This machine adopts safety grating protection system. Operator need to stand when operating.

Machine adopts two hands simultaneously start button to ensure safety.

Efficiency stator coil forming machine,stator coil forming machine,coil forming machine work,coil forming machine used

Generator Stator Coil Forming Machine / Automatic Stator Coil Winding Machine 0

(4) OEM/ODM



Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
