    Insulating Paper Inserting Machine Controlled By PLC Program, Slot Insulation Auto - Inserting
  • Core Length
    80-300mm
  • Efficiency
    0.5s/s
  • Weight
    445kg
  • Automatic
    Slot Paper Inserting
  • Automatic Grade
    Full-Automatic
  • Place of Origin
    China
  • Brand Name
    SMT
  • Certification
    ISO/SGS Audit
  • Model Number
    SMT-C100
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Plywood Case With Plastic Bag.
  • Delivery Time
    52 - 88 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1pcs / 52 - 88 days

Auto - Inserting Paper Inserter 445kg PLC Program Controlled High Speed



Insulation Paper Inserting Machine Slot Bottom Insulation Paper Inserting Machine

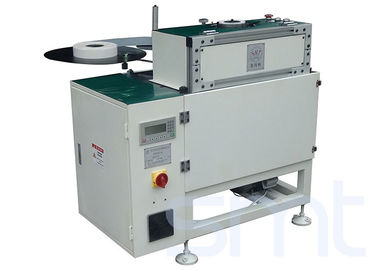

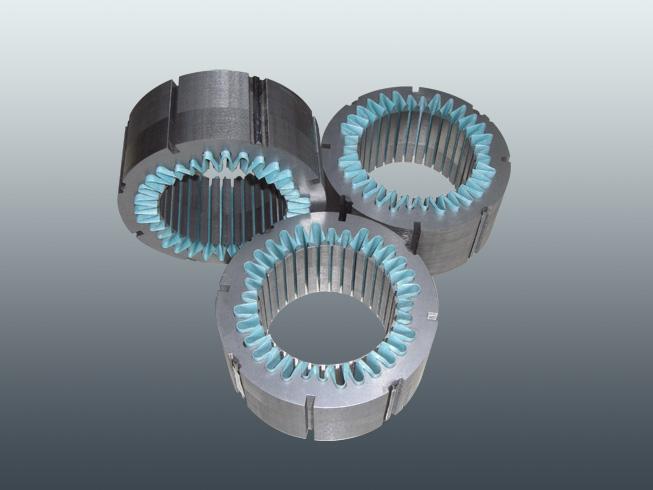

This machine is designed for slot cell paper insertion of medium and small size stator. All procedure are done by the machine automatically except to put on and take off stator. The complete inserting time for 24 slots stator can be shorten to12 sec/stator. The production cost will be highly reduced by decreasing the material loss andlabor cost.

(1) Main Technical Data

Model C100
Core Length 10-90mm
Stator I.D 20-80mm
Stator O.D ≤140mm
Height of edge folded 2-4mm
Insulation paper’s thickness ≤0.35mm
Efficiency 0.5s/s
Power supply 380V, 50/60Hz, 0.75kW
Weight 400kg
Dimension 1100*650*1000mm


(2) Application

1. Suitable exclusively for large and medium-sized motors,inserting insulation paper automatically from bottom of stator slot;
2. Automatic paper feeding,edge folding and forming;
3. Characterized by low noise, fast speed, excellent forming,etc;
4. Slot number change is controlled by electric;
5. Interval slot inserting and skip slot inserting could be at option;
6. It is convenient and easy for different slot number stator production and changing tooling;
7. Especially suitable for generator,deep pump motor, three phase machine,etc.
(3) Machine Main Characteristic

It is a special design specific to different design or different sizes of slot; can finish insulation paper insertion at a time; automatic adjustment to perimeter, automatic cutting paper, automatic hemming and automatic inserting when inserting to various or different-sized slot; use servo paper inserting machine to feed paper and settle breadth; interpersonal interface sets required specific parameter; forming mould is adjustable to different sizes of slot automatically; characterized by simple operation, low noise, fast speed and high automaticity.
The equipment adopts programmable terminal, also called touched screen, that can set and display necessary information, it is easy to operate and reliable.


(4) OEM/ODM

Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.

(5) Production Line Profile

With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.
Auto - Inserting Paper Inserter 445kg PLC Program Controlled High Speed 0
(6) About Us

Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
