Long Stack Length Stator Middle Coil Forming Machine 4Kw 50L/Min

Long Stack Length Stator Middle Coil Forming Machine 4Kw 50L/Min

  • High Light

    Stator Coil Winding Machine

    ,

    electric motor winding equipment

  • Name
    Horizontal Type Big Power Long Stack Length Pump Stator Coil Middle Forming
  • Model
    ZJ600
  • Stator I.D.
    110-210mm
  • Stator O.D.
    ≤300mm
  • Machine Dimension (LxWxH)
    L3726x W1251 X H2111mm
  • Displacement Of Cylinder
    40L
  • After-sales Service
    Overseas Service Available
  • Place of Origin
    China
  • Brand Name
    SMT
  • Certification
    ISO / SGS Audit
  • Model Number
    SMT - ZJ600
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Plywood Box With a Plastic Bag.
  • Delivery Time
    40 - 89 days
  • Payment Terms
    T/T , L/C
  • Supply Ability
    1pcs / 40 - 75 days

Long Stack Length Stator Middle Coil Forming Machine 4Kw 50L/Min

Horizontal type Big power long stack length pump stator coil middle forming machine

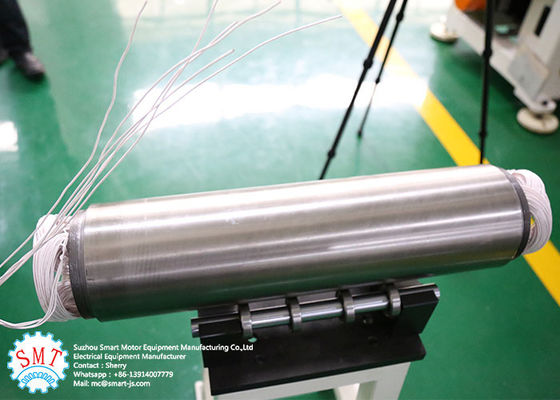

This machine is suitable for big power stator, long stack length stator(deep-well pump stator) or other big dimension stator. It is horizontal type with a auto slider. Stator can be moved by lifting device. Tooling adopts flexible principles of inner expansion, outer wrapping and edge forming. It is controlled by PLC. The parameter can be set in the HMI.


(1) Main technical data



Stator OD ≤300mm
Stator ID ≤200mm
Stack Height ≤600 mm
Height of Coil ≤70mm
Pitch time ≤30s/pc
Displacement of Cylinder 50L/min
Power supply 380V 50/60Hz 4Kw
Weight ≈2500Kg
Dimension (L)4400×(W)1850×(H)1350mm


(2) Application


It is applied to deep water pump motor and other various type of big dimension stator.

(3) Machine mainfunction and characteristic


This machine is suitable for big power stator, long stack length stator(deep-well pump stator) or other big dimension stator. It is horizontal type with a auto slider. Stator can be moved by lifting device. Tooling adopts flexible principles of inner expansion, outer wrapping and edge forming. It is controlled by PLC. The parameter can be set in the HMI.

(4) Information needed for final forming machine inquiry:


It will be better if customer could send us detailed drawing including below information.
1. Stator lamination drawing
2. Stator stack drawing
3. Winding drawing
4. Other technical requirement.

If possible, it will better if customer could send us samples.

(5) Competitive advantages


Variety of application, easy operation.
We have Overseas Service Center.
Machine is controlled by PLC. All the parameter can be set in the touch screen.
It is suitable for stators with different model number and dimension.
The operation and tooling change process is easy.
We could customize machine for our customer as per their requirement.
We directly supply our machines to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.
This machine is controlled by PLC. All the parameter could be set on the touch screen,

This machine is suitable for big power stator, long stack length stator(deep-well pump stator) or other big dimension stator. It is horizontal type with a auto slider. Stator can be moved by lifting device. Tooling adopts flexible principles of inner expansion, outer wrapping and edge forming. It is controlled by PLC. The parameter can be set in the HMI.
