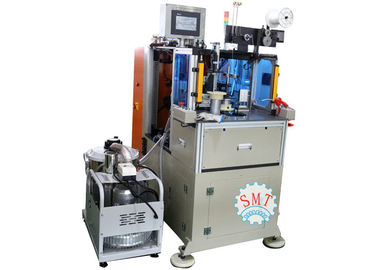

Small Motor Automatic Stator Lacing Machine Wire Coil Winding Inserting SMT - DB160
  • name

Small Motor Automatic Stator Lacing Machine Wire Coil Winding Inserting SMT - DB160

MOQ: 1 Set
Price: Negotiable
Standard Packaging: Stator lacing machine is packed with wood case.
Delivery Period: 2.5 - 3.1 months
Payment Method: T/T , L/C
Supply Capacity: 1pcs / 2.5 - 2.1 months
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
SMT
Certification
ISO / SGS Audit
Model Number
SMT - DB160
Name:
Automatic Cable Coil Needle Lacing Machine For Motor Stator
Machine Dimension:
(L)1000*(W)600*(H)1250mm
Lacing Mode:
Slot By Slot/ Interval Slot
G Lacing Speed:
About 0.55s/s
Height Of Coil:
≤50mm
Lacing Speed:
0.8 S/s
OEM:
Yes
Color:
Customized
Highlight:

Coil Wire Binding Machine

,

induction motor winding machine

Product Description

Motor Servo Double Side Coil Lacing Machine Motor Production Machine

Description:
Double ends electric motor stator coil automatic lacing and binding machine .
This Automatic motor stator coil lacing machine is consist of machine body, needle, nozzle rotating part, needle fore and back movement,nozzle swing part, needle up and down movement part, stator indexing part,thread feeding,thread cutting part.
This stator coil lacing machine adopts servo driven system, CNC control design and HIM program.
The indexing is driven by servo system.
Different lacing mode could be set such as slot lacing, interval lacing, and fancy lacing.
Main spindle adopts servo control system.
The rotation speed can be set.
Two needles driven by servo system lace upper and lower coil simultaneously.
Machine can automatically feed thread and cut thread.
There is no need to tie a knot.
Tooling change is fast and convenient.
Stator stack length range is 50-130mm.
Lacing tension can be set, Production capacity ≤1s/slot.
Should be no copper wire snap and wire enamel broken.
Primary qualification rate ≥98.5%, after rework, the rate ≥99.5%.
This stator coil lacing machine adopts safety grating protection system.
Operator need to stand when operating.

Applications:
The stator coil lacing machine is suitable for lacing the oven-hang of the induction motor stator.
It is used for stator which meets the specification of below.
The stator coil lacing and binding machine is suitable for air conditioner motor, washing machine motor, compression motor, fan motor, generator motor and pump motor.

Specifications :

Product name Automatic motor stator lacing machine
Stator stack length 15~120mm
Min. stator ID 33mm
Max. stator OD 150mm
Over-hang height 15~48mm
Pitch time About 0.5~0.7sec/slot
Air pressure 0.5~0.8MPa
Power supply 380V/50/60Hz
Power 3KW
Weight About 920kg
Dimension 1600 x 700 x 1680mm

Tags:

induction motor winding machine,

Coil Wire Binding Machine,

automatic stator winding machine
