Double Side Stator Lacing Machine Full Servo / Motor Coil Lacing Machine SMT

Double Side Stator Lacing Machine Full Servo / Motor Coil Lacing Machine SMT

  • Double Side Stator Lacing Machine Full Servo / Motor Coil Lacing Machine SMT
Double Side Stator Lacing Machine Full Servo / Motor Coil Lacing Machine SMT
Product Details:
Place of Origin: China
Brand Name: SMT
Certification: ISO / SGS Audit
Model Number: SMT - BZ190
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Stator lacing machine is packed with wood case.
Delivery Time: 2.5 - 3.1 months
Payment Terms: T/T , L/C
Supply Ability: 1pcs / 2.5 - 2.1 months
Contact Now
Detailed Product Description
Name: Double Side Lacing Machine Weight: 710kgs
Machine Dimension: (L)1000*(W)600*(H)1250mm Lacing Mode: Slot By Slot/ Interval Slot
G Lacing Speed: About 0.55s/s Warranty: One Year
Height Of Coil: ≤50mm Lacing Speed: 0.8 S/s
High Light:

Coil Wire Binding Machine

,

induction motor winding machine

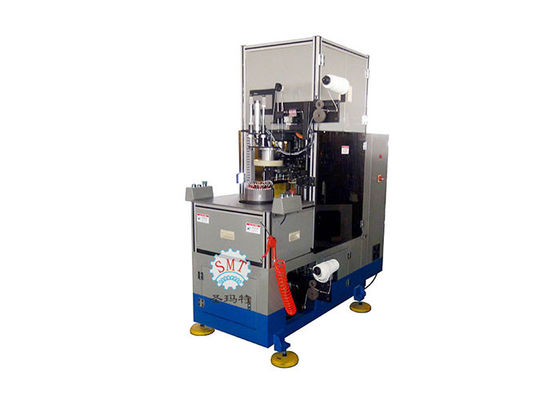

Double Side Lacing Machine (Full Servo) / Motor Coil Lacing Machine





Loading stator vertically; equipped with pressing, automatic feeding, automatic cutting device, etc,; overhang winding adpots twin needle lacing by servo system simultaneously; needle transpositioning, hookin and stator indexing are controlled by servo system; spindle adopts frequency speed control; slot by slot lacing, interval lacing, and fancy lacing could be achieved by setting in human-machine interface; characterized by compact appearance, fast speed, low noise; simple peration and easy tooling change.

Equipped with pressing, automatic feeding, automatic cutting device .

Overhang winding adpots twin needle lacing by servo system simultaneously Spindle adopts frequency speed control; slot by slot lacing, interval lacing, and fancy lacing could be achieved by setting in human-machine interface .

High efficiency and easy operation OEM available, same quality much lower price Characterized by compact appearance, fast speed, low noise; simple peration and easy tooling change.



(1) Main Technical Information



Model BZ190
Stack Height 80-190mm
Stator I.D. 40-120mm
Stator O.D. ≤180mm
Height of coil ≤50mm
Lacing Mode Slot by slot/interval slot/Fancy lacing
Lacing Speed About 0.8s/s
Power Supply 220V/50/60Hz 2Kw
Weight 700kgs
Machine dimension (L)1000*(W)600*(H)1250mm



(2) Advantage



This machine adopts servo driven system, CNC control design and HIM program.

The indexing is driven by servo system. Different lacing mode could be set such as slot lacing, interval lacing, and fancy lacing.

Main spindle adopts servo control system. The rotation speed can be set.

Two needles driven by servo system lace upper and lower coil simultaneously.

Machine can automatically feed thread and cut thread. There is no need to tie a knot.

Tooling change is fast and convenient. Stator stack length range is 50-130mm.

Lacing tension can be set,

Production capacity ≤1s/slot.

Should be no copper wire snap and wire enamel broken.

Primary qualification rate ≥98.5%, after rework, the rate ≥99.5%

his machine adopts safety grating protection system. Operator need to stand when operating.

Machine adopts two hands simultaneously start button to ensure safety.



Double Side Stator Lacing Machine Full Servo / Motor Coil Lacing Machine SMT 0


(3) Machine Main Characteristic



1. Adapting industrial PLC, human-computer interface and horizontal frame-structure design, the servo system machine accurately controls the lacing action.

2. Different lacing methods such as slot-by-slot lacing, interval lacing and fancy lacing are programmable.

3. This machine is suitable for the big stator with high winding over-hang.

4. The tooling is movable and convenient for stator fast loading and unloading, hence to reduce the labor strength effectively.



(4) OEM/ODM



The company mainly produces motor machinery and equipment. Our products mainly include automatic winding machine, lacing machine, inserting machine, shaping machine, forming machine etc. We adopt overseas advanced technology and processes and corporate willpower to improve electromechanical fully automated factory production capacity, with the most stable quality and customer service to get the biggest trust.

We are in a safe, professional and efficient service concept of "wisdom and humanity towards the direction of development, technology and the world simultaneously with the progress", to meet different needs of customers to create a brilliant career.



(5) Production Line Profile



With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.
