|Name:||Horizontal Reducer Industry Motor Stator Slot Insulation Paper Inserting Machine Cut And Form Insulation Paper||Model:||SMT-CW300|
|Stack Height:||Max: 210mm||Cuff Height:||5~7mm|
|TAKT Time:||About 1sec/slot||Air Pressure:||0.6MP|
Horizontal Paper Inserting Machine,
Slot Insulation Paper Inserting Machine,
Customized Paper Inserting Machine

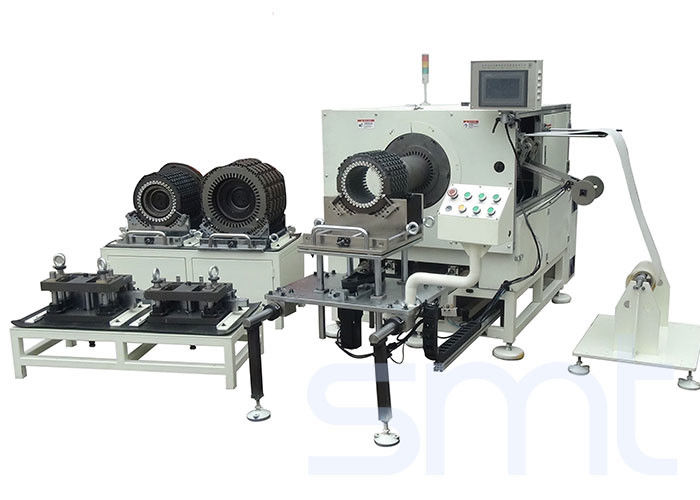

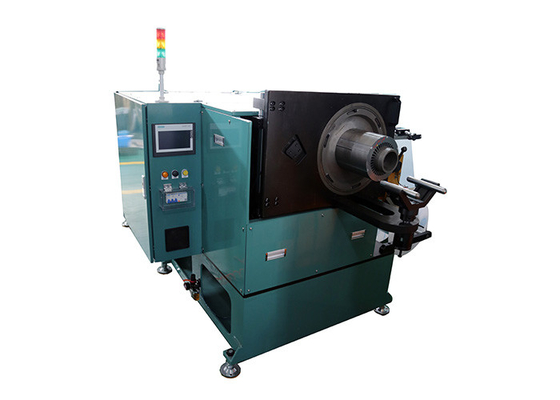

Horizontal Reducer Industry Motor Stator Slot Insulation Paper Inserting Machine Cut and Form Insulation Paper
(1) Main Features of Horizontal Stator Slot Insulation Paper Inserting Machine
Paper feeding, folding, cutting, forming and inserting are all automatically finished.
Equipped with HMI; Slot No. can be set when changeover;
It’s in horizontal structure, reducing the labor intensity of workers effectively;
Programmable PLC control system;
Adopting servo motor for stator indexing; be capable of inserting the paper slot by slot or slot-skipping;
Automatically stop upon paper jamming;
With stator support fixture for stator loading/unloading;
Operator works in standing posture;
Pressing the button to start the machine by single hand;
Changeover time: ≈25mins;
(2) Technical Parameters
|Insulation paper’s thickness||≤0.35mm|
|Power supply||380V/50/60Hz 1.1Kw|
(3) Main Allocation
PLC controller: INOVANCE(China);
Servo system: INOVANCE(China);
Sensor element: OMRON(Japan), AUTONICS(Korea);
Other electrical elements: SCHNEIDER (France), IDEC (Japan), Delixi (China);
Bearing: NSK(Japan), SKF(Sweden);
Power: 2.5Kw;(as per actual configuration)
Power source: 3 phases 415V/50Hz;
We're dedicated to R&D and manufacturing machines for different induction motors production, such as Coil Winding machine, Coil Inserting Machine, etc.
Design and manufacturing are standard except customer has special request. For example, shape design, allocation and colour,etc. can be specilized. Besides, we can help to arrange the layout of machines in customer site when necessary.
Our engineers will provide customers with professional technical support. Within one year warranty period, some support and parts need to be replaced will be without charge.
Overseas after-service is also available. If customer needs our help, our after-sales engineers will be at customer's site within the shortest time.
With good service, professional team and reliable quality, SMT provide customer with different kinds of equipments for various motors production. It can be one set machine or the whole prodcution line from winding process to final forming process. So especially for customer who wants the whole production line, we can provide manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training, even complete turn-key project.
Our machines are mainly applied in various induction motors such as washing machine motor, air conditioner motor, general purpose pump motor, reducer motor, industrial three-phase motor, fan motor and new energy motor, etc.
