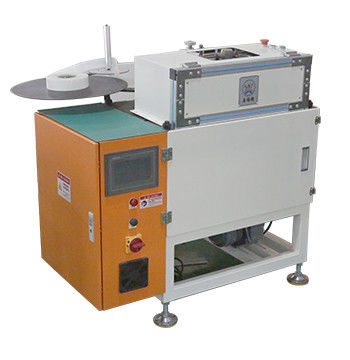

Slot Insulation Paper Inserter Machine Electric Motor Winding

Slot Insulation Paper Inserter Machine Electric Motor Winding

  • Highlight

    120mm paper inserter machine

    ,

    Electric Motor Paper Inserter

    ,

    Electric Motor Slot Insulation Machine

  • Name
    Motor Stator Slot Insulation Paper Inserting Machine
  • Stator I.D.
    50-120mm
  • Stator O.D.
    ≤190mm
  • Overseas After-Service
    Engineers Are Available
  • Automatic Grade
    Semiautomatic
  • Function
    Abrasion Resistance
  • Width Of Edge Folded
    2.5-4mm
  • Paper Thicknes
    Max3.05mm
  • Color
    Custom-made
  • Place of Origin
    China
  • Brand Name
    SMT
  • Certification
    ISO/SGS Audit
  • Model Number
    SMT-C100
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Plywood Case With Plastic Bag.
  • Delivery Time
    51 - 88 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1pcs / 51 - 88 days

Slot Insulation Paper Inserter Machine Electric Motor Winding

Slot Insulation Machine Electric Motor Winding Equipment Paper Inserter





Quick Detail:
1. This machine is used for induction motor stator.
2. This machine is designed for different slot sizes, and it can do the paper inserting automatically.
3. Simple operation, low noise, fast speed and high automaticity.
4. PLC and touch screen control.



(1) Main Technical Data



Model C100
Core Length 10-90mm
Stator I.D 20-80mm
Stator O.D ≤140mm
Height of edge folded 2-4mm
Insulation paper’s thickness ≤0.35mm
Efficiency 0.5s/s
Power supply 380V, 50/60Hz, 0.75kW
Weight 411kg
Dimension 1100*650*1000mm



(2) Application


1. Suitable exclusively for large and medium-sized motors,inserting insulation paper automatically from bottom of stator slot;

2. Automatic paper feeding,edge folding and forming;

3. Characterized by low noise, fast speed, excellent forming,etc;

4. Slot number change is controlled by electric;

5. Interval slot inserting and skip slot inserting could be at option;

6. It is convenient and easy for different slot number stator production and changing tooling;

7. Especially suitable for generator,deep pump motor, three phase machine,etc.


(3) Machine Main Characteristic



It is a special design specific to different design or different sizes of slot; can finish insulation paper insertion at a time; automatic adjustment to perimeter, automatic cutting paper, automatic hemming and automatic inserting when inserting to various or different-sized slot; use servo paper inserting machine to feed paper and settle breadth; interpersonal interface sets required specific parameter; forming mould is adjustable to different sizes of slot automatically; characterized by simple operation, low noise, fast speed and high automaticity.
The equipment adopts programmable terminal, also called touched screen, that can set and display necessary information, it is easy to operate and reliable.



(4) OEM/ODM



Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.
