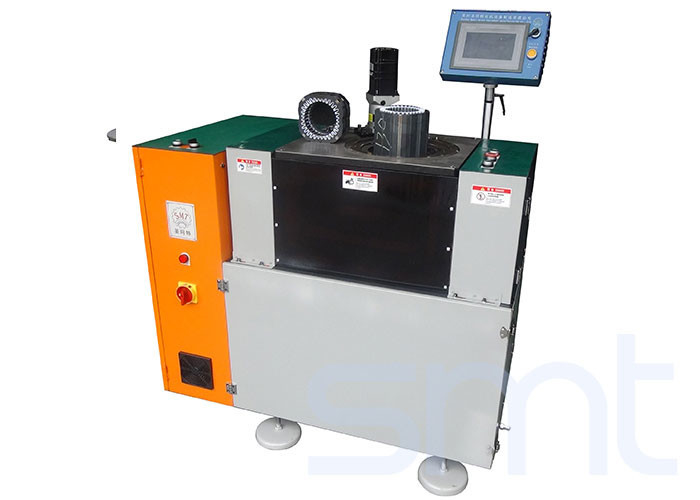

SMT-SC160 Slot Insulation Machine for 3-7mm Cuff Height Motors
Product Summary
Electric Motor Stator Slot Insulation Paper Inserting Machine 3 - 7mm Cuff Height Specialized Slot Insulation Machine for Medium-size Induction Motors SMT-SC160 Automatic adjustment to perimeter, automatic cutting paper, automatic hemming and automatic inserting when inserting to various or ...
Product Custom Attributes
SMT-SC160 slot insulation machine
,motor slot insulation machine 3-7mm
,paper inserting machine for motors
Basic Properties
Trading Properties
Product Description
Automatic adjustment to perimeter, automatic cutting paper, automatic hemming and automatic inserting when inserting to various or different-sized slot; use servo paper inserting machine to feed paper and settle breadth; interpersonal interface sets required specific parameter; forming mode is adjustable to different sizes of slot automatically.
| Model | SMT-SC160 |
|---|---|
| Stack height | ≤160mm |
| Stator I.D | Φ70~Φ150mm |
| Stator O.D | ≤Φ200mm |
| Cuff height | 3~7mm |
| Insulation paper's thickness | ≤0.35mm |
| TAKT time | ≈0.8s/s |
| Power supply | 380V/50/60Hz 1.1Kw |
| Air Pressure | ≥0.5MPa |
| Weight | ≈550Kg |
| Dimension(L×W×H mm) | 1250×1100×1500mm |
This specialized slot insulation machine is used for inserting insulation paper to stator slots automatically at one time, especially for stators with different slot shapes. The tooling design is according to stator slots shape and dimension. Different kinds of tooling is available for stator production.
- Special design for stators with different slot shapes and sizes, like washing machine motor, fan motor, compressor motor, etc.
- Can finish insulation paper insertion with one roll insulation paper at one time
- Automatic adjustment of paper length and width, paper cutting, cuff forming and inserting when inserting paper to different-size and different-shape slot
- Paper feeding and cutting are finished by servo motors
- Interpersonal interface sets required specific parameters
- Forming mold is adjustable to different slot sizes automatically
- Characterized by simple operation, low noise, fast speed and high automation
- Indexing can be configured with servo motors or stepper motors
We're dedicated to R&D and manufacturing machines for different induction motors production, such as Coil Winding machine, Coil Inserting Machine, etc.
Design and manufacturing are standard except customer has special request. For example, shape design, allocation and colour,etc. can be specialized. Besides, we can help to arrange the layout of machines in customer site when necessary.
Our engineers will provide customers with professional technical support. Within one year warranty period, some support and parts need to be replaced will be without charge.
Overseas after-service is also available. If customer needs our help, our after-sales engineers will be at customer's site within the shortest time.
Our machines are mainly applied in various induction motors such as washing machine motor, air conditioner motor, general purpose pump motor, reducer motor, industrial three-phase motor, fan motor and new energy motor, etc.
Suzhou Smart motor Equipment Manufacturing Co.,Ltd is a Chinese manufacturer, which is specialize in R&D, manufacturing and selling automatic equipments for motor production as well as exporting equipments to the world. The company now has nearly 81 employees including more than 10 engineers and technicians, with the building area about 5,000 square meters and hundered sets of advanced production and equipments under testing.
