Hydraulic Coil Forming Machine with 30L Displacement and 20-120mm Stack Height for Stator Coil Winding

MOQ: 1 Set
Price: Negotiable
Standard Packaging: Wooden Case Suitable For Sea Transportation.
Delivery Period: 8-10weeks
Payment Method: T/T,L/C
Supply Capacity: 1pcs / 8-10weeks
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
SMT
Certification
ISO / SGS Audit
Model Number
SMT-ZZ160
Name:
Electric Motor Stator Coil Winding Final Forming Machine / Copper Wire / Aluminum Wire
Model:
ZZ160
Customized Service::
Available
Machine Size:
Middle Size
After-sales Service:
Engineers Available
Forming Power:
Hydraulic System
Warranty:
One Year
Displacement Of:
30L
Highlight:

30L Displacement Coil Forming Machine

,

20-120mm Stack Height Stator Coil Winding Machine

,

40-120mm Stator I.D Electric Motor Winding Equipment

Product Description

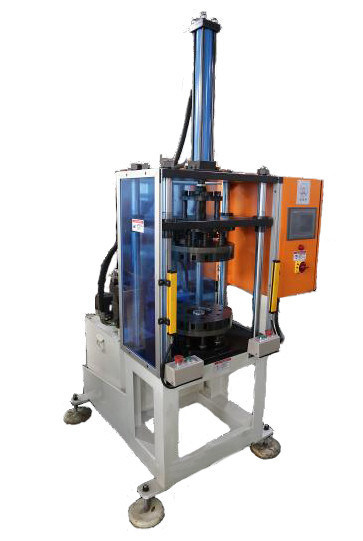

Fan Motor Stator Semi-Automatic Coil Winding Forming Machinery SMT-ZZ160
Motor Stator Coil Winding Final Forming Machine Copper Wire / Aluminum Wire SMT-ZZ160
This machine expands the inserted coil to leave space for the next one, ensuring efficient multi-layer stator winding insertion.
  • Hydraulic system driven for powerful operation
  • PLC programming for precise control
  • Tolling expansion slice creates space for successive coil insertion
  • Maintains inter-phase insulation paper integrity
  • Ideal for multi-layer stator winding applications
Main Technical Specifications
Model ZZ160
Stack height 20-120mm
Stator I.D 40-120mm
Stator O.D ≤190mm
Displacement of cylinder 30L
Input 380V/50/60Hz
Power supply 2.5Kw
Machine weight About 1000kg
Machine dimension (LxWxH) 1200x750x2650mm
Applications
This machine is designed for various motor types including:
  • New energy automobile motors
  • Servo motors and generators
  • Three-phase motors
  • Pump and compressor motors
  • Household appliance motors
  • Other induction motors
Machine Characteristics
  • Hydraulic system with PLC programming
  • Adjustable forming stack length via washer changes
  • Preserves slot paper and wedge integrity
  • Prevents stator deformation and wire enamel damage
  • Production capacity ≤13s/set (excluding loading/unloading)
  • Primary qualification rate ≥99.5%, final rate ≥99.9%
  • Safety grating protection system
  • Two-hand simultaneous start for operator safety
OEM/ODM Services
  • Custom technical solutions for unique requirements
  • Professional after-sale service with door-to-door support
  • Domestic and international service network
  • 24/7 customer service availability
Production Line Profile
SMT provides comprehensive motor manufacturing services including technical consulting, cost evaluation, manufacturing know-how, staff training, and complete turn-key projects for AC, DC, and BLDC motors.
About SMT
Suzhou Smart Motor Equipment Manufacturing Co., Ltd is a high-tech enterprise specializing in motor manufacturing equipment. With 150 employees including 30+ engineers, 20,000 square meter facility, and ISO9001:2000 certification, we provide complete production line solutions from coil winding to final stator forming.
Hydraulic Coil Forming Machine with 30L Displacement and 20-120mm Stack Height for Stator Coil Winding 0
Tags:

Stator Coil Winding Machine,

electric motor winding equipment,

Pre - Forming Machine
