Custom ISO9001 Certified Slot Insulation Machine for Stator I.D. 50-120mm and O.D. ≤190mm

MOQ: 1 Set
Price: Negotiable
Standard Packaging: Plywood Box With Plastic Bag.
Delivery Period: 34 - 71 days
Payment Method: L/C,T/T
Supply Capacity: 1pcs / 35 - 71 days
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
SMT
Certification
ISO/SGS Audit
Model Number
SMT-C160
Name:
Custom Stator Slot Insulation Paper Inserting Machine / Slot Insulation Machine
Stator I.D.:
50-120mm
Stator O.D.:
≤190mm
Insulation Paper’s Thickness:
≤0.35mm
Weight:
520kg
Dimension:
1200*670*1130mm
Highlight:

ISO9001 Certified Slot Insulation Machine

,

Stator I.D. 50-120mm Paper Inserting Machine

,

Stator O.D. ≤190mm Stator Slot Insulation Machine

Product Description

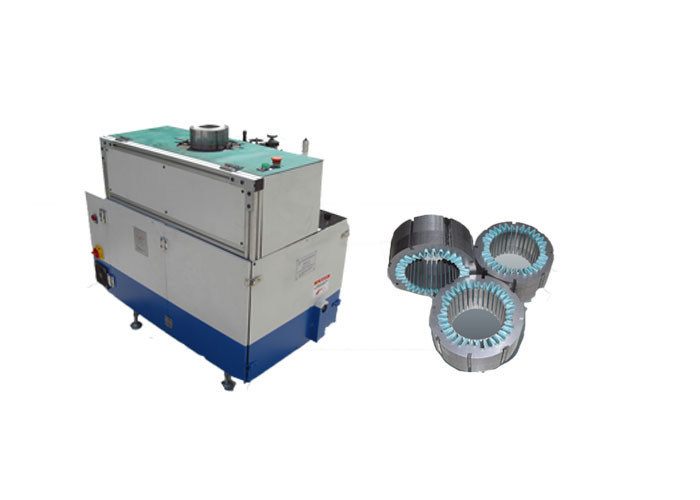

Custom Stator Slot Insulation Paper Inserting Machine / Slot Insulation Machine SMT-C160
The series adopt a mechanical transmission system, a pneumatic system, AC servo control system and industrial programmable PLC integrated control system, and automatically complete zero resetting, fixed-length feeding, fixed blade removal, hemming, cutting, moulding, inserting into respective slot, rotary division and pushing out of stator. It can complete inserting work of multi-slot simultaneously.
Main Technical Data
Model C160
Stack height 20-160mm
Stator I.D 50-120mm
Stator O.D ≤190mm
Height of edge folded 3-5mm
Insulation paper's thickness ≤0.35mm
Efficiency 0.6s/s
Power supply 380V, 50/60Hz, 0.75kW
Weight 520kg
Dimension 1200*670*1130mm
Application
  • Suitable exclusively for large and medium-sized motors, inserting insulation paper automatically from bottom of stator slot
  • Automatic paper feeding, edge folding and forming
  • Characterized by low noise, fast speed, excellent forming
  • Slot number change is controlled by electric
  • Interval slot inserting and skip slot inserting options available
  • Convenient for different slot number stator production and tooling changes
  • Ideal for generators, deep pump motors, three phase machines
Machine Main Characteristics
Special design for different slot sizes; completes insulation paper insertion in one operation; features automatic perimeter adjustment, paper cutting, hemming and inserting for various slot sizes; uses servo paper inserting machine for paper feeding and breadth setting; interpersonal interface for parameter setting; adjustable forming mould for different slot sizes; simple operation, low noise, fast speed and high automation.
The equipment features a programmable terminal (touch screen) for setting and displaying information, ensuring easy operation and reliability.
OEM/ODM Services
Innovative technical team provides complete technical solutions to meet unique customer requirements.
Specialized after-sale team offers superior quality, rapid door-to-door service to resolve all after-sale issues.
Extensive service network with domestic stations and overseas agencies ensures powerful after-sale support.
24/7 customer service through multiple communication channels eliminates after-sale concerns.
Production Line Profile
With excellent service, professional team and reliable quality, SMT provides technical consulting and turn-key project services for AC motor, DC motor, and BLDC motor manufacturing, including cost evaluation, manufacturing know-how, staff training, and complete turn-key solutions.
