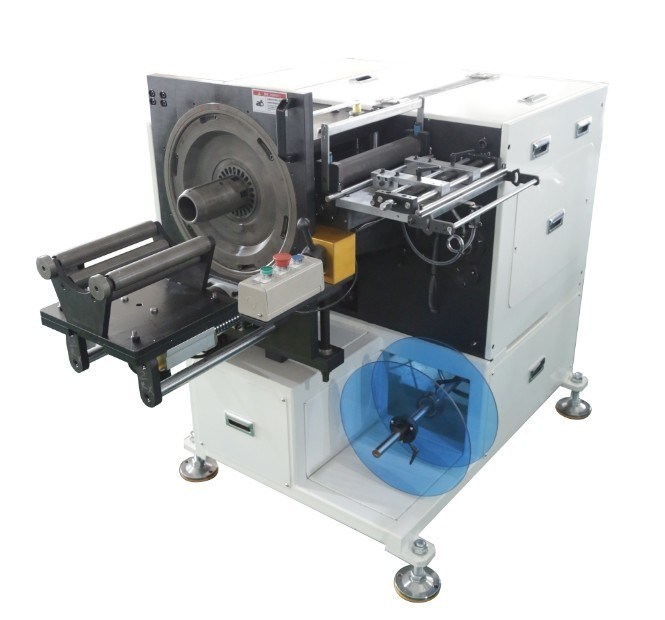

ISO Certified Slot Insulation Machine for 3 Phase Motor with High Speed and PLC Controlled Operation
  • name

ISO Certified Slot Insulation Machine for 3 Phase Motor with High Speed and PLC Controlled Operation

MOQ: 1 SET
Price: Negotiable
Standard Packaging: Plywood Box With sealing
Delivery Period: 8-10 weeks
Payment Method: L/C,T/T
Supply Capacity: 7-11 weeks
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
SMT
Certification
ISOSGS Audit
Model Number
CW3.0
Highlight:

3 Phase Motor Slot Insulation Machine

,

High Speed Slot Insulation Machine

,

PLC Controlled Slot Insulation Machine

Product Description
ISO Slot Insulation Machine For 100-200mm Stator ID
Slot Insulation Machine 100-200mm Stator ID ISO / SGS Audit
Application
Suitable for stators used in single phase motors, three phase motors, compressor motors, starter motors, washing machine motors, air conditioners and more.
For optimal machine inquiry, please provide detailed drawings including:
  • Stator lamination drawing
  • Stator stack drawing
  • Wire connection drawing
  • Stator application details
Main Technical Features
Model SMT-CW3.0
Stator OD 170-260mm
Stator ID 100-200mm
Stack Height 90-220mm
Paper Thickness ≤0.38mm
Cuff Height 3~7.5mm
Cycle time ≈120pc/min
Power supply 6Kw 3 phases 380V/50Hz
Weight 1050kg
Dimension (L)2350×(W)1100×(H)1500mm
ISO Certified Slot Insulation Machine for 3 Phase Motor with High Speed and PLC Controlled Operation 0
Application Industries
Primarily used in new energy automobile motors, servo motors, generators, three-phase motors, pump motors, compressor motors, household appliance motors and other induction motors. Our expertise covers stator and rotor core assembly, slot insulation, auto winding, inserting, fusing, and resin impregnation for various stator sizes and slot shapes.
Our Service
We prioritize product quality and service excellence to enhance your global market competitiveness. Whether you need machines, components, or OEM products, we are your reliable partner for establishing long-term business relationships.
OEM/ODM Capabilities
  • Innovative technical team provides customized solutions
  • Specialized after-sale service with door-to-door support
  • Domestic and international service network
  • 24/7 customer service availability
Production Line Profile
We offer comprehensive motor manufacturing services including technical consulting, cost evaluation, staff training, and turn-key project solutions for AC motors, DC motors, and BLDC motors.
ISO Certified Slot Insulation Machine for 3 Phase Motor with High Speed and PLC Controlled Operation 1
About Us
SMT Intelligent Device Manufacturing (Zhejiang) Co., Ltd is a high-tech enterprise specializing in motor manufacturing equipment. With 150 employees including 30+ engineers, we operate from a 20,000 sqm facility equipped with advanced production and testing equipment. Certified by ISO9001:2000, we provide complete production line solutions for various motor types.
Tags:

electric motor winding equipment,

paper inserter,

slot insulation machine
