Labor Saving Automatic Stator Slot Insulation Machine
Product Summary
Labor Saving Automatic Stator Slot Insulation Machine Generator Stator Slot Insulation Machine Paper Inserter This advanced machine automatically inserts insulation paper from the bottom of stator slots, featuring: Automatic paper feeding Precision edge folding and forming Electric-controlled slot ...
Product Custom Attributes
Name:
Labor Saving Automatic Stator Slot Insulation Machine
Stator I.D.:
80 -150mm
Stator O.D.:
≤210mm
Automatic Grade:
Full-Automatic
Weight:
560kg
Condition:
New
Port:
Shanghai
Efficiency:
0.6 S/s
Highlight:
automatic stator slot insulation machine
,labor saving paper inserting machine
,stator insulation machine with warranty
Basic Properties
Place of Origin:
China
Brand Name:
SMT
Certification:
ISO/SGS Audit
Model Number:
SMT-CW200
Trading Properties
Minimum Order Quantity:
1 Set
Price:
Negotiable
Packaging Details:
Plywood Box With Sealing.
Delivery Time:
62 - 84 days
Payment Terms:
T/T,L/C
Supply Ability:
1pcs / 62 - 78 days
Product Description

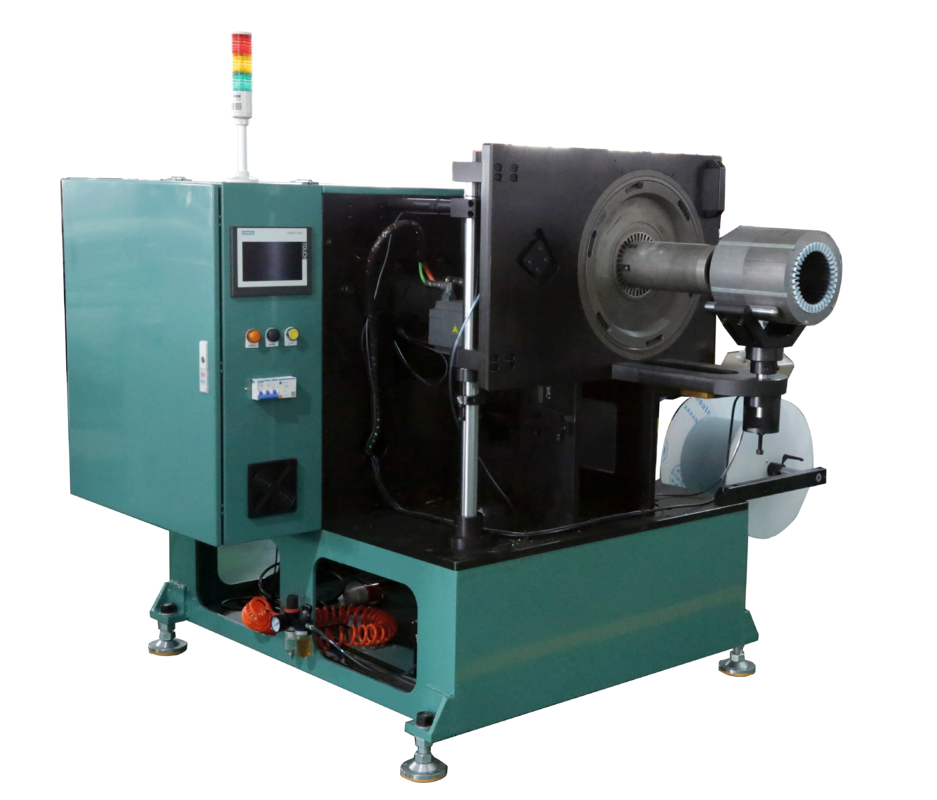

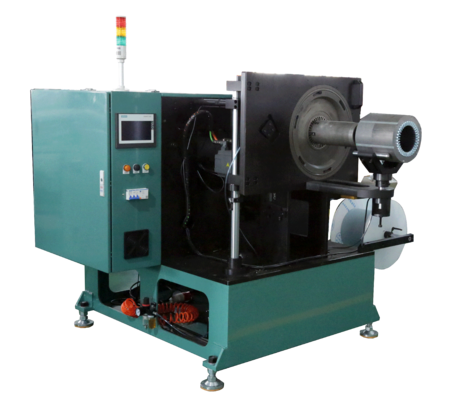

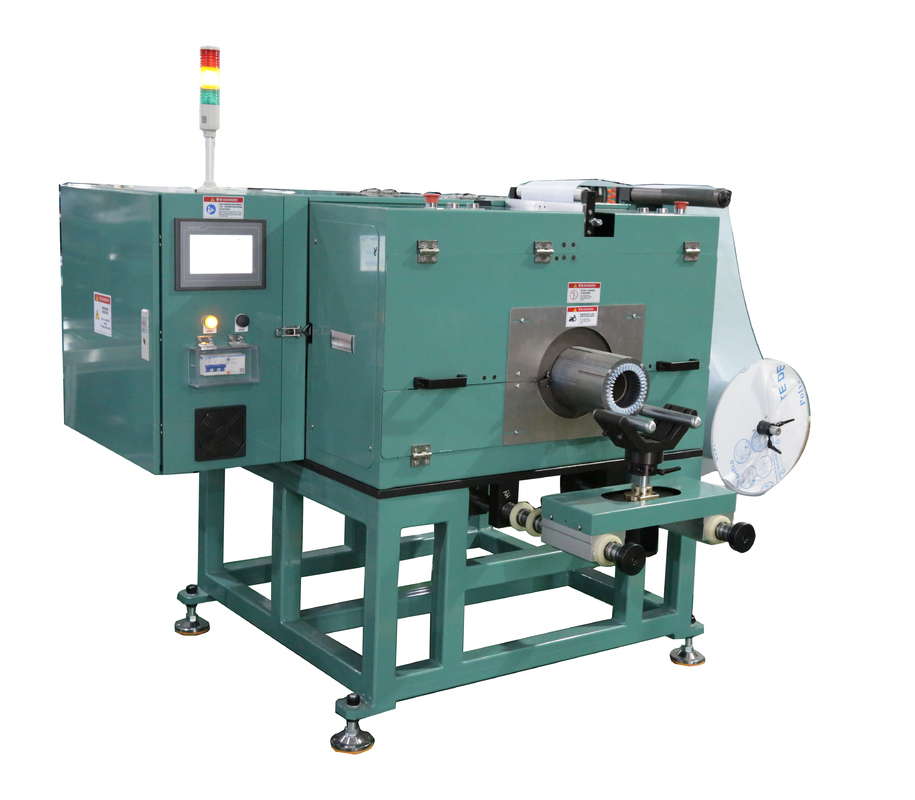

Labor Saving Automatic Stator Slot Insulation Machine
Generator Stator Slot Insulation Machine Paper Inserter
This advanced machine automatically inserts insulation paper from the bottom of stator slots, featuring:
- Automatic paper feeding
- Precision edge folding and forming
- Electric-controlled slot number change
- Optional interval or skip slot inserting
- Easy tooling change for different slot number stators
Main Technical Specifications
| Model | CW200 |
|---|---|
| Core length | 60-190mm |
| Stator I.D. | 80-150mm |
| Stator O.D. | ≤210mm |
| Height of Edge Folded | 3-7mm |
| Insulation paper thickness | ≤0.35mm |
| Efficiency | 0.7-1 s/s |
| Power Supply | 380V/50/60Hz 0.75Kw |
| Weight | 550kg |
| Machine dimensions | (L)1100*(W)900*(H)1500mm |
Applications
- Ideal for large and medium-sized motors
- Low noise operation with fast processing speed
- Excellent forming quality
- Electric-controlled slot number adjustment
- Flexible inserting patterns (interval/skip slot)
- Easy tooling change for different stator configurations
- Perfect for generators, deep pump motors, and three-phase machines
Machine Characteristics
This specialized machine features custom design for various slot sizes and configurations. It performs complete insulation paper insertion in one operation with automatic perimeter adjustment, paper cutting, hemming, and insertion. The servo-driven paper feeding system ensures precise width control, while the user-friendly interface allows easy parameter setting. The adjustable forming mold accommodates different slot sizes automatically, offering simple operation with low noise, high speed, and superior automation.
The equipment incorporates a programmable touchscreen terminal for intuitive operation and reliable performance monitoring.
OEM/ODM Services
Our innovative technical team delivers complete customized solutions to meet unique customer requirements. We provide:
- Dedicated after-sales service teams for rapid support
- Comprehensive domestic and international service network
- 24/7 customer support through multiple communication channels
Production Line Profile
SMT offers professional consulting and turnkey project services for various motor manufacturing processes, including:
- Motor cost evaluation
- Manufacturing know-how transfer
- Staff training programs
- Complete turnkey project implementation
About Our Company
Suzhou Smart Motor Equipment Manufacturing Co., Ltd is a leading high-tech enterprise specializing in motor manufacturing equipment design, production, and sales. With nearly 150 employees including 30+ engineers, our 20,000 square meter facility houses advanced production and testing equipment.
We provide complete production line solutions (from coil winding to final stator forming) for various AC motors including industrial motors, pump motors, and automotive applications. Certified under ISO9001:2000 Quality Management System since 2012.
