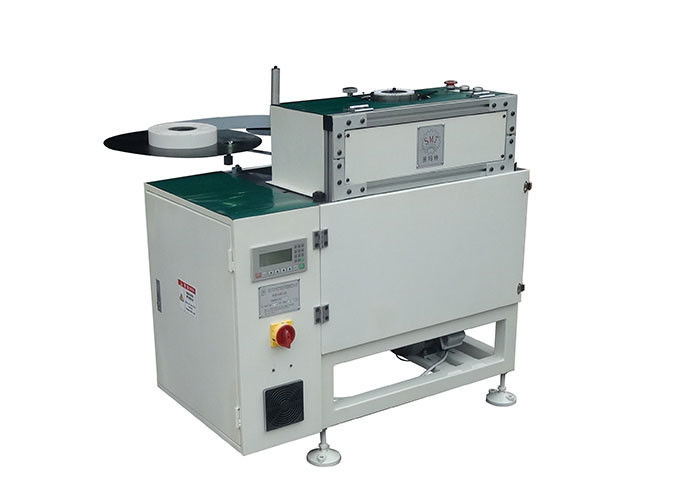

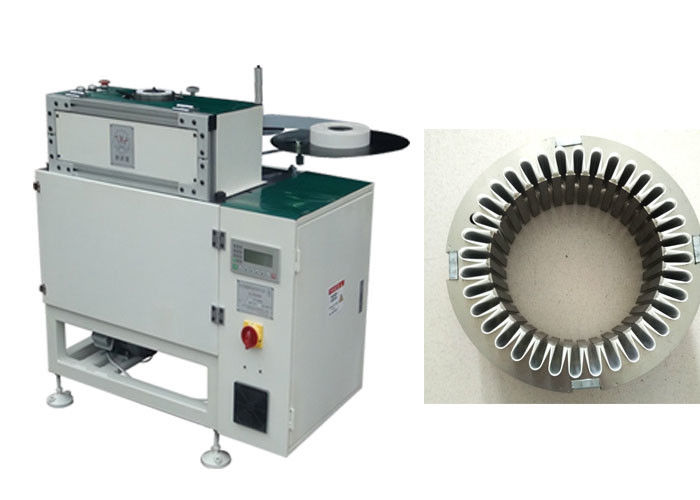

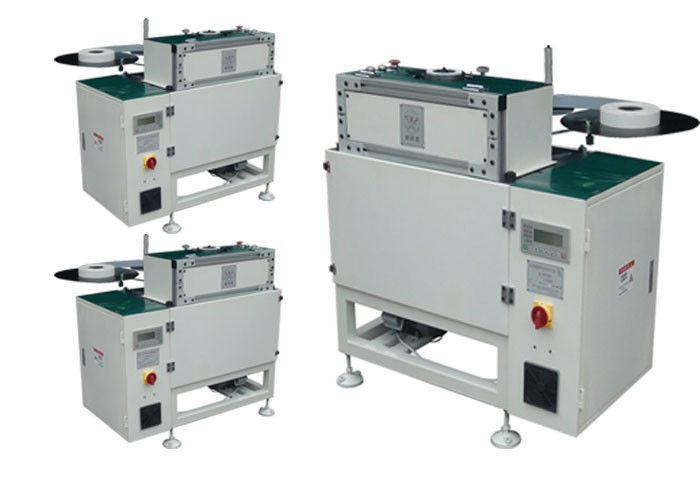

Slot Insulation Machine Starter Armature Production SMT-C100
This stator coil end lacing machine features a vertical loading structure with two needles for simultaneous lacing on both sides of stator coils. The servo-driven needle movement ensures precise operation with adjustable main spindle speed. Programmable via industrial PLC and HMI, it supports various lacing patterns including slot-by-slot, interval slot, and fancy lacing. Ideal for multi-species stator production with varying lead wire quantities, this machine combines mature technology with reliable quality and easy operation.
Main Technical Data
| Model | C100 |
|---|---|
| Core Length | 10-90mm |
| Stator I.D | 20-80mm |
| Stator O.D | ≤140mm |
| Height of edge folded | 2-4mm |
| Insulation paper's thickness | ≤0.35mm |
| Efficiency | 0.5s/s |
| Power supply | 380V, 50/60Hz, 0.75kW |
| Weight | 400kg |
| Dimension | 1100*650*1000mm |
Application
- Designed for large and medium-sized motors, automatically inserting insulation paper from stator slot bottoms
- Features automatic paper feeding, edge folding, and forming
- Operates with low noise, high speed, and excellent forming quality
- Electric control for slot number changes
- Optional interval slot or skip slot inserting configurations
- Easy tooling changes for different slot number stator production
- Ideal for generators, deep pump motors, and three-phase machines
Machine Main Characteristics
This specialized machine handles various slot designs and sizes, completing insulation paper insertion in one operation. Features include automatic perimeter adjustment, paper cutting, hemming, and insertion for different slot sizes. The servo-driven paper feeding system with adjustable breadth and programmable interface allows for parameter customization. The forming mold automatically adjusts to different slot sizes, offering simple operation, low noise, high speed, and full automation.
The equipment includes a programmable touchscreen terminal for easy operation and reliable performance, enabling quick setup and information display.
