Electric Motor Stator Slot Insulation Machine For Motors Insulating

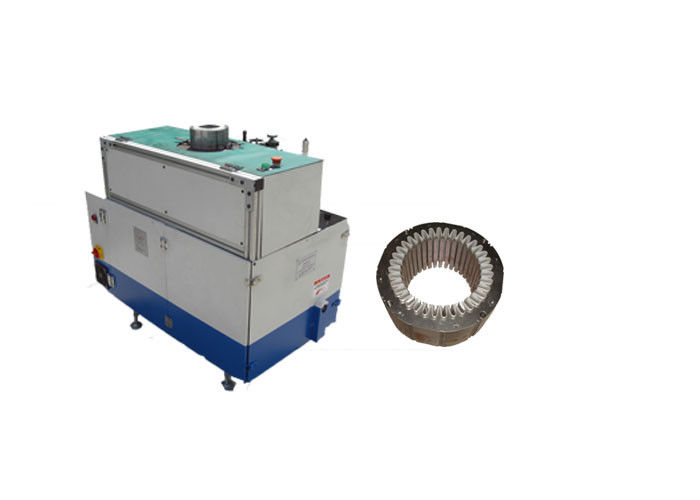

SMT-C160 Multi-shape Stator Slot Insulation Machine Paper Insertion Machine



The series adopt a mechanical transmission system, a pneumatic system, AC servo control system and industrial programmable PLC integrated control system, and automatically complete zero resetting, fixed-length feeding, fixed blade removal, hemming, cutting, moulding, inserting into respectiviely slot, rotary division and pushing out of stator. It can complete inserting work of multi-slot at the same time.

Equiped with man-machine interface, it is endowed with the functions of status display, failure warning and various parameter settings, etc. and suitable for one time inserting of slot insulation materials of various small motor stators.
With high efficiency and easy operation, fixed blade removal, stator indexing by servo motor.


(1) Main Technical Data


Model C160
Stack height 20-160mm
Stator I.D 50-120mm
Stator O.D ≤190mm
Height of edge folded 3-5mm
Insulation paper’s thickness ≤0.35mm
Efficiency 0.6s/s
Power supply 380V, 50/60Hz, 0.75kW
Weight 500kg
Dimension 1200*650*1100mm


(2) Application

1. Suitable exclusively for large and medium-sized motors,inserting insulation paper automatically from bottom of stator slot;

2. Automatic paper feeding,edge folding and forming;

3. Characterized by low noise, fast speed, excellent forming,etc;

4. Slot number change is controlled by electric;

5. Interval slot inserting and skip slot inserting could be at option;

6. It is convenient and easy for different slot number stator production and changing tooling;

7. Especially suitable for generator,deep pump motor, three phase machine,etc.

(3) Machine Main Characteristic


It is a special design specific to different design or different sizes of slot; can finish insulation paper insertion at a time; automatic adjustment to perimeter, automatic cutting paper, automatic hemming and automatic inserting when inserting to various or different-sized slot; use servo paper inserting machine to feed paper and settle breadth; interpersonal interface sets required specific parameter; forming mould is adjustable to different sizes of slot automatically; characterized by simple operation, low noise, fast speed and high automaticity.
The equipment adopts programmable terminal, also called touched screen, that can set and display necessary information, it is easy to operate and reliable.



(4) OEM/ODM


Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.


(5) Production Line Profile


With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.
