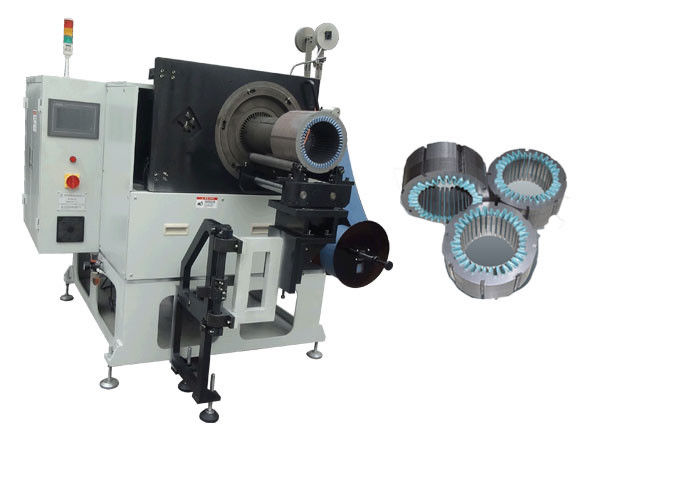

Electric Motor Stator Different Slots Insulation Paper Inserting Machine

Electric Motor Stator Different Slots Insulation Paper Inserting Machine

  • High Light

    electric motor winding equipment


    paper inserter


    Different Slots paper inserter

  • Name
    Electric Motor Stator Different Slots Insulation Paper Inserting Machine
  • Insulation Paper's Thickness
  • Stator I.D.
  • Stator O.D.
  • Cuff Height
  • Warranty
    One Year
  • Place of Origin
  • Brand Name
  • Certification
    ISO/SGS Audit
  • Model Number
  • Minimum Order Quantity
    1 Set
  • Price
  • Packaging Details
    Plywood Box With a Plastic Bag Outside.
  • Delivery Time
    43 - 83 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1pcs / 42 - 81 days

Electric Motor Stator Different Slots Insulation Paper Inserting Machine

Electric Motor Stator Different Slots Insulation Paper Inserting Machine


1. The tooling is with modular design, which is convenient and easy to change the tooling. It is suitable for
medium and large frame motors with housing or not.
2. It is suitable to insert insulation paper automatically for large and medium-sized motors with housing or not.
3. The tooling changeover time is less than 30 minutes, which is suitable for motor with various kinds and small quantity.
4. The mechanical structure is mainly controlled by servo system, instead of mechanical parts transmission.
5. The tooling is with modular design.
6. It's convenient and easy to change the tooling.


(1) Main Technical Information


Model CW300
Core length 80-300mm
Stator I.D. 100-200mm
Stator O.D. ≤300mm
Height of Edge Folded 3-10mm
Insulation paper's thickness ≤0.35mm
Efficiency 1.2s/s
Power Supply 380V/50/60Hz 0.75Kw
MOQ 1 set of Slot Paper Insertion Machine
Machine dimension (L)1100*(W)910*(H)1510mm


(2) Application


1. Suitable exclusively for large and medium-sized motors,inserting insulation paper automatically from bottom of stator slot;

2. Automatic paper feeding,edge folding and forming;

3. Characterized by low noise, fast speed, excellent forming,etc;

4. Slot number change is controlled by electric;

5. Interval slot inserting and skip slot inserting could be at option;

6. It is convenient and easy for different slot number stator production and changing tooling;

7. Especially suitable for generator,deep pump motor, three phase machine,etc.

(3) Machine Main Characteristic


It is a special design specific to different design or different sizes of slot; can finish insulation paper insertion at a time; automatic adjustment to perimeter, automatic cutting paper, automatic hemming and automatic inserting when inserting to various or different-sized slot; use servo paper inserting machine to feed paper and settle breadth; interpersonal interface sets required specific parameter; forming mould is adjustable to different sizes of slot automatically; characterized by simple operation, low noise, fast speed and high automaticity.
The equipment adopts programmable terminal, also called touched screen, that can set and display necessary information, it is easy to operate and reliable.



(4) OEM/ODM


Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.


(5)Production Line Profile


With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.
