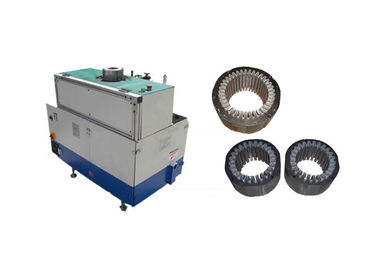

Automatic Slot Insulating Insertion Machine For Series Motors Stator Insulation SMT-C160

Automatic Slot Insulating Insertion Machine For Series Motors Stator Insulation SMT-C160

  • High Light

    electric motor winding equipment

    ,

    paper inserter

    ,

    Automatic Slot Insulation Insertion Machine

  • Name
    Automatic Slot Insulating Insertion Machine For Series Motors Stator Insulation
  • Stator I.D.
    50-120mm
  • Stator O.D.
    ≤190mm
  • Power Supply
    380V/50/60Hz 0.75Kw
  • Weight
    500kg
  • Dimension
    1200*650*1100mm
  • Warranty
    One Year
  • Insulation Paper's Thickness
    ≤0.25mm
  • Place of Origin
    China
  • Brand Name
    SMT
  • Certification
    ISO/SGS Audit
  • Model Number
    SMT-C160
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Plywood Box With Plastic Bag.
  • Delivery Time
    56 - 77 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1pcs / 56 - 76 days

Automatic Slot Insulating Insertion Machine For Series Motors Stator Insulation SMT-C160

Automatic Slot Insulating Insertion Machine For Series Motors Stator Insulation SMT-C160





1. Auto paper feeding,edge folding and forming.
2. Quiet,high speed operation.
3. Servo slot indexing.
4. Fast tooling change.
5. Servo material feed optional.
6. Servo offset Die-sets optional.
7. Automatic adjustment of paper perimeter and developed width for variable slot geometry.
8. Typically used for manufacturing stators with different slot shapes and depths
like in washing machine motors,fan motors,compressor motors,etc.



(1) Main Technical Data



Model C160
Stack height 20-160mm
Stator I.D 50-120mm
Stator O.D ≤190mm
Height of edge folded 3-5mm
Insulation paper’s thickness ≤0.35mm
Efficiency 0.6s/s
Power supply 380V, 50/60Hz, 0.75kW
Weight 500kg
Dimension 1200*650*1100mm



(2) Application

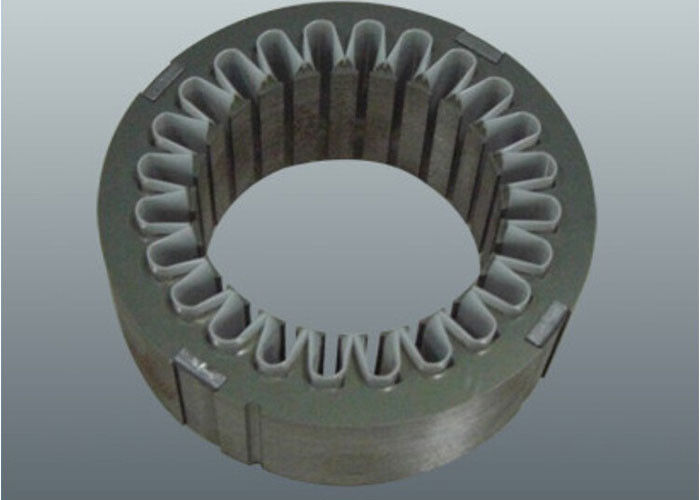

1. Suitable exclusively for large and medium-sized motors,inserting insulation paper automatically from bottom of stator slot;

2. Automatic paper feeding,edge folding and forming;

3. Characterized by low noise, fast speed, excellent forming,etc;

4. Slot number change is controlled by electric;

5. Interval slot inserting and skip slot inserting could be at option;

6. It is convenient and easy for different slot number stator production and changing tooling;

7. Especially suitable for generator,deep pump motor, three phase machine,etc.


(3) Machine Main Characteristic



It is a special design specific to different design or different sizes of slot; can finish insulation paper insertion at a time; automatic adjustment to perimeter, automatic cutting paper, automatic hemming and automatic inserting when inserting to various or different-sized slot; use servo paper inserting machine to feed paper and settle breadth; interpersonal interface sets required specific parameter; forming mould is adjustable to different sizes of slot automatically; characterized by simple operation, low noise, fast speed and high automaticity.
The equipment adopts programmable terminal, also called touched screen, that can set and display necessary information, it is easy to operate and reliable.





(4) OEM/ODM



Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.



(5) Production Line Profile



With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.
