|Name:||Automatic Slot Insulation Paper Inserting Machine For Pump / Fan||Stator I.D.:||39-80mm|
|Stator O.D.:||≤180mm||Height Of Edge Folded:||3-10mm|
|Power Supply:||380V/50/60Hz 0.75Kw||Air Pressure:||≥0.5Mpa|
electric motor winding equipment,
Paper Inserting Machine for Pump

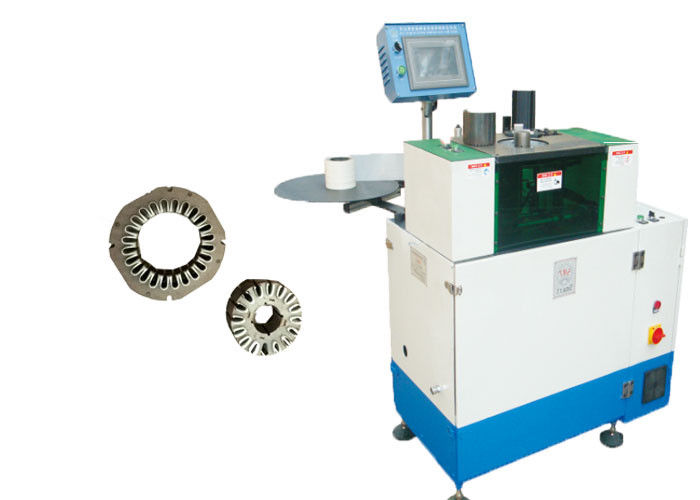

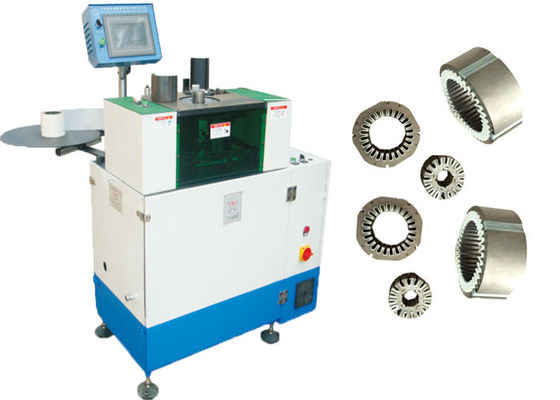

Automatic Slot Insulation Paper Inserting Machine for Pump / Fan SMT - SC08
1. Suitable exclusively for large and medium-sized motors, inserting insulation paper automatically from bottom of stator slot;
2. automatic paper feeding, edge folding and forming;
3. characterized by low noise , fast speed, excellent forming, etc.;
4. slot number change is controlled by electric; interval slot inserting could be at option;
5. it is convenient and easy for different slot number stator production and changing tooling.
6. Especially suitable for generator, deep pump motor, three phase machine, etc.
(1) Main Technical Data
|Stack Height of Stator||≤60mm|
|Width of Edge Folded||2.5-4mm|
|Power Supply||380V/50/60Hz 0.75Kw|
1. Suitable exclusively for large and medium-sized motors,inserting insulation paper automatically from bottom of stator slot;
2. Automatic paper feeding,edge folding and forming;
3. Characterized by low noise, fast speed, excellent forming,etc;
4. Slot number change is controlled by electric;
5. Interval slot inserting and skip slot inserting could be at option;
6. It is convenient and easy for different slot number stator production and changing tooling;
7. Especially suitable for generator,deep pump motor, three phase machine,etc.
(3) Machine Main Characteristic
It is a special design specific to different design or different sizes of slot; can finish insulation paper insertion at a time; automatic adjustment to perimeter, automatic cutting paper, automatic hemming and automatic inserting when inserting to various or different-sized slot; use servo paper inserting machine to feed paper and settle breadth; interpersonal interface sets required specific parameter; forming mould is adjustable to different sizes of slot automatically; characterized by simple operation, low noise, fast speed and high automaticity.
The equipment adopts programmable terminal, also called touched screen, that can set and display necessary information, it is easy to operate and reliable.
Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.
(5) Production Line Profile
With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.
The automatic stator slot paper inserting machine is characterized in that: the forming mechanism comprises a forming slot, a material pushing blade and a cutter. The material pushing blade pushes the slot paper to the forming slot and cuts off the slot paper. A notch conversion block is arranged above the forming slot. The conversion block is provided with two or more shaping slots according to the stator slot shape. Under driving of a converter, the notch conversion block selects a corresponding shaping slot according to the size of the stator slot shape for connecting with the forming slot in a butt-jointing manner. A conical material guiding slot which has a smaller upper part and a larger lower part for transition connection is arranged between the shaping slot and the forming slot.
