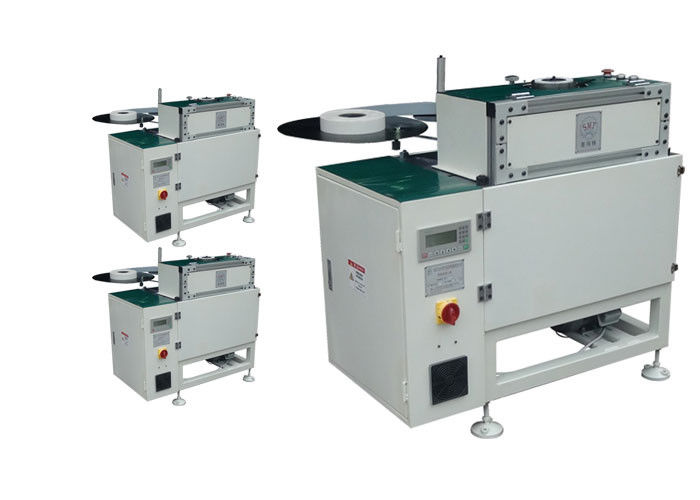

Paper Inserting Machine Controlled By PLC Program Slot Insulation Auto - Inserting

Paper Inserting Machine Controlled By PLC Program Slot Insulation Auto - Inserting

    • Paper Inserting Machine Controlled By PLC Program Slot Insulation Auto - Inserting
    • Paper Inserting Machine Controlled By PLC Program Slot Insulation Auto - Inserting
  • Paper Inserting Machine Controlled By PLC Program Slot Insulation Auto - Inserting

    Product Details:

    Place of Origin: China
    Brand Name: SMT
    Certification: ISO/SGS Audit
    Model Number: SMT-C100

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Plywood Case With Plastic Bag.
    Delivery Time: 52 - 88 days
    Payment Terms: T/T, L/C
    Supply Ability: 1pcs / 52 - 88 days
    Contact Now
    Detailed Product Description
    Name: Insulating Paper Inserting Machine Controlled By PLC Program, Slot Insulation Auto - Inserting Core Length: 80-300mm
    Efficiency: 0.5s/s Weight: 445kg
    Automatic: Slot Paper Inserting Automatic Grade: Full-Automatic
    High Light:

    paper inserter

    ,

    slot insulation machine

    Insulation Paper Inserting Machine Slot Bottom Insulation Paper Inserting Machine

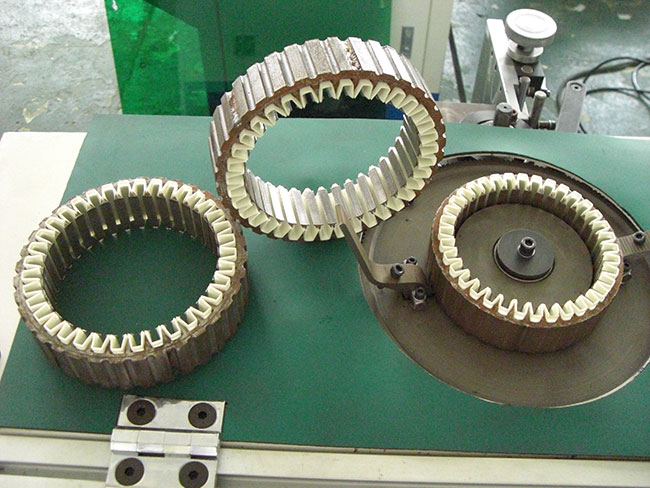

    Suitable exclusively for large and medium-size motors,inserting insulation paper automatically from bottom of stator slot;automatic paper feeding,edge folding and forming;characterized by low noise,fast speed,excellent forming,etc.;slot number change is controlled by electric;interval slot inserting and skip slot inserting could be at option;it is convenient and easy for different slot number stator production and changing tooling.Especially suitable for generator,deep pump motor,three phase machine,etc..

    (1) Main Technical Data


    ModelC100
    Core Length10-90mm
    Stator I.D20-80mm
    Stator O.D≤140mm
    Height of edge folded2-4mm
    Insulation paper’s thickness≤0.35mm
    Efficiency0.5s/s
    Power supply380V, 50/60Hz, 0.75kW
    Weight400kg
    Dimension1100*650*1000mm


    (2) Application

    1. Suitable exclusively for large and medium-sized motors,inserting insulation paper automatically from bottom of stator slot;
    2. Automatic paper feeding,edge folding and forming;
    3. Characterized by low noise, fast speed, excellent forming,etc;
    4. Slot number change is controlled by electric;
    5. Interval slot inserting and skip slot inserting could be at option;
    6. It is convenient and easy for different slot number stator production and changing tooling;
    7. Especially suitable for generator,deep pump motor, three phase machine,etc.
    (3) Machine Main Characteristic

    It is a special design specific to different design or different sizes of slot; can finish insulation paper insertion at a time; automatic adjustment to perimeter, automatic cutting paper, automatic hemming and automatic inserting when inserting to various or different-sized slot; use servo paper inserting machine to feed paper and settle breadth; interpersonal interface sets required specific parameter; forming mould is adjustable to different sizes of slot automatically; characterized by simple operation, low noise, fast speed and high automaticity.
    The equipment adopts programmable terminal, also called touched screen, that can set and display necessary information, it is easy to operate and reliable.


    (4) OEM/ODM

    Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
    Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
    Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
    Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.

    (5) Production Line Profile

    With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.
    Paper Inserting Machine Controlled By PLC Program Slot Insulation Auto - Inserting
    (6) About Us

    Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
