Name: Slot Paper Inserting Machine For AC Motor Stator Core Length: 80-300mm
Efficiency: 0.6s/s Weight: 450kg
Automatic: Slot Paper Inserting Automatic Grade: Full-Automatic
Tact Time: 0.6sec/SLOT Slot Spape: 2-4
High Light:

electric motor winding equipment


slot insulation machine

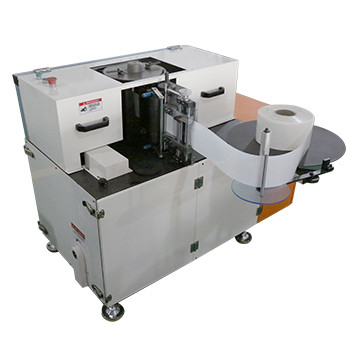

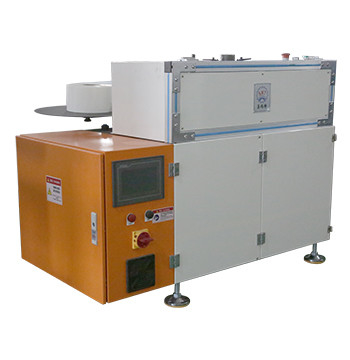

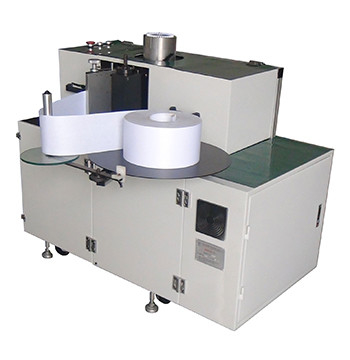

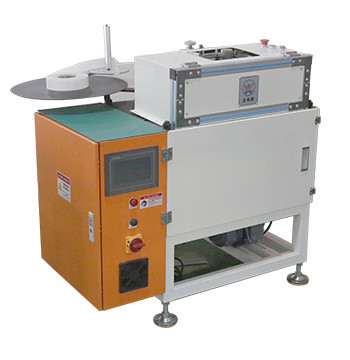

Slot Paper Inserting Machine For AC Motor Stator



1. It is power actuated, controlled by cam program and able to automatically do the following work: Feeding, hemming, sizing, cutting, molding, inserting magnet core and rotation and division of magnet core.
2. It is able to add slot insulation intermittent inserting function according to magnet core with different slots.
3. It is easy to regulate and change the mold, excellent in stability, convenient in operation and maintenance, and efficient in work.


Low noise, high efficiency
Production capacity ≤1s/slot (exclude the loading/unloading time)
Manual loading and unloading
Can be customized accordingly
High quality level of the paper inserting process
High repeatability of the insulation's shape and length
Parameter of different models can be edited, modified and displayed
Quick and easy readjustment for other types of stator
After paper inserted, no deformation of stator or lamination
Easy for operation, No skilled operator required


(1) Main Technical Data


Model C160
Core Length 20-160mm
Stator I.D 50-120mm
Stator O.D 80-160mm
Height of edge folded 2-4mm
Insulation paper’s thickness ≤0.35mm
Efficiency 0.6s/s
Power supply 380V, 50/60Hz, 1.5kW
Weight 450kg
Dimension 1200*800*1200mm


(2) Application

1. Suitable exclusively for large and medium-sized motors,inserting insulation paper automatically from bottom of stator slot;

2. Automatic paper feeding,edge folding and forming;

3. Characterized by low noise, fast speed, excellent forming,etc;

4. Slot number change is controlled by electric;

5. Interval slot inserting and skip slot inserting could be at option;

6. It is convenient and easy for different slot number stator production and changing tooling;

7. Especially suitable for generator,deep pump motor, three phase machine,etc.

(3) Machine Main Characteristic


It is a special design specific to different design or different sizes of slot; can finish insulation paper insertion at a time; automatic adjustment to perimeter, automatic cutting paper, automatic hemming and automatic inserting when inserting to various or different-sized slot; use servo paper inserting machine to feed paper and settle breadth; interpersonal interface sets required specific parameter; forming mould is adjustable to different sizes of slot automatically; characterized by simple operation, low noise, fast speed and high automaticity.
The equipment adopts programmable terminal, also called touched screen, that can set and display necessary information, it is easy to operate and reliable.

Slot Paper Inserting Machine For AC Motor Stator 0

(4) OEM/ODM


Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.


(5) Production Line Profile


With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.
