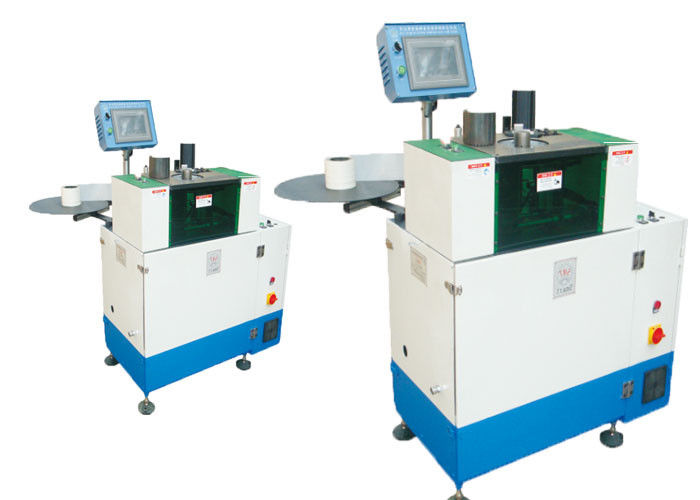

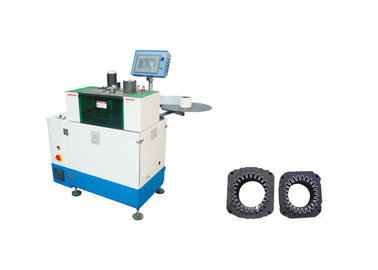

    Name: Slot Insulation Machine / Horizontal Electrical Paper Inserting Machine Model: SC80
    Stator I.D.: 39-80mm Stator O.D.: ≤180mm
    Height Of Edge Folded: 3-10mm Power Supply: 380V/50/60Hz 0.75Kw
    Warranty Time: 1 Year Overseas After-Service: Our Engineer Is Avaliable
    High Light:

    electric motor winding equipment


    slot insulation machine

    SMT - SC160 Slot Insulation Machine Horizontal Electrical 39-80 mm Stator ID



    1. This machine is used for induction motor stator.
    2. This machine is designed for different slot sizes, and it can do the paper inserting automatically.
    3. Simple operation, low noise, fast speed and high automaticity.
    4. PLC and touch screen control.


    (1) Main Technical Data


    Model SC80
    Stator I.D. 40-80mm
    Stator O.D. ≤160mm
    Stack Height of Stator ≤60mm
    Width of Edge Folded 2.5-4mm
    Feeding Perimeter ≥12mm
    Material's thickness ≤0.35mm
    Power Supply 380V/50/60Hz 0.75Kw
    Air Pressure ≥0.5MPa
    Machine dimension (L)1150*(W)1000*(H)1500mm


    (2) Application

    1. Suitable exclusively for large and medium-sized motors,inserting insulation paper automatically from bottom of stator slot;

    2. Automatic paper feeding,edge folding and forming;

    3. Characterized by low noise, fast speed, excellent forming,etc;

    4. Slot number change is controlled by electric;

    5. Interval slot inserting and skip slot inserting could be at option;

    6. It is convenient and easy for different slot number stator production and changing tooling;

    7. Especially suitable for generator,deep pump motor, three phase machine,etc.

    (3) Machine Main Characteristic


    It is a special design specific to different design or different sizes of slot; can finish insulation paper insertion at a time; automatic adjustment to perimeter, automatic cutting paper, automatic hemming and automatic inserting when inserting to various or different-sized slot; use servo paper inserting machine to feed paper and settle breadth; interpersonal interface sets required specific parameter; forming mould is adjustable to different sizes of slot automatically; characterized by simple operation, low noise, fast speed and high automaticity.
    The equipment adopts programmable terminal, also called touched screen, that can set and display necessary information, it is easy to operate and reliable.


    (4) OEM/ODM


    Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
    Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
    Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
    Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.


    (5) Production Line Profile


    With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

    SMT - SC80 Paper Inserting Machine Horizontal Electrical 39-80 mm Stator ID 0

    (6) About Us


    Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
