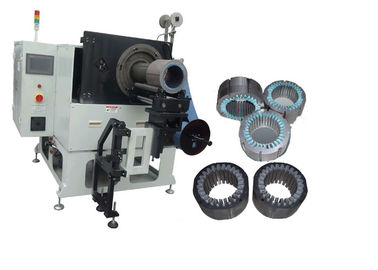

Name: Motor Production Slot Insulation Paper Insertion Machine Core Length: 60-190mm
Stator I.D.: 80 -150mm Stator O.D.: ≤210mm
Height Of Edge Folded: 3-10mm Automatic Grade: Full-Automatic
OEM: Yes Weight: 560kg
Condition: New Port: Shanghai
High Light:

paper inserter


slot insulation machine


Motor Production Slot Insulation Machine

Motor Production Slot Insulation Machine , Motor Winding Equipment



Information needed for paper insertion machine inquiry
It will be better if customer could send us detailed drawing including below information.
1. Stator lamination drawing
2. Stator stack drawing
3. insulation paper drawing and its material
4. Stator application
5. Required productivity
6. Other technical requirement
If possible, it will be better if customer can send us samples.


(1) Main Technical Data


Model CW200
Core length 60-190mm
Stator I.D. 80 -150mm
Stator O.D. ≤210mm
Height of Edge Folded 3-7mm
Insulation paper's thickness ≤0.35mm
Efficiency 0.7-1 s/s
Power Supply 380V/50/60Hz 0.75Kw
Weight 550kg
Machine dimension (L)1100*(W)900*(H)1500mm


(2) Application


1. Suitable exclusively for large and medium-sized motors,inserting insulation paper automatically from bottom of stator slot;

2. Automatic paper feeding,edge folding and forming;

3. Characterized by low noise, fast speed, excellent forming,etc;

4. Slot number change is controlled by electric;

5. Interval slot inserting and skip slot inserting could be at option;

6. It is convenient and easy for different slot number stator production and changing tooling;

7. Especially suitable for generator,deep pump motor, three phase machine,etc.

(3) Machine Main Characteristic


It is a special design specific to different design or different sizes of slot; can finish insulation paper insertion at a time; automatic adjustment to perimeter, automatic cutting paper, automatic hemming and automatic inserting when inserting to various or different-sized slot; use servo paper inserting machine to feed paper and settle breadth; interpersonal interface sets required specific parameter; forming mould is adjustable to different sizes of slot automatically; characterized by simple operation, low noise, fast speed and high automaticity.
The equipment adopts programmable terminal, also called touched screen, that can set and display necessary information, it is easy to operate and reliable.


(4) OEM/ODM


Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.


(5) Production Line Profile


With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.
