    Slot Insulation Paper Insertion Machine For Washing Machine / Fan / Pump
  • Stator I.D.
    100-200mm
  • Stator O.D.
    ≤300mm
  • Height Of Edge Folded
    3-10mm
  • Power Supply
    0.75Kw
  • Warranty
    12 Months
  • Appropriate Wire
    0.2~1.2mm
  • Place of Origin
    China
  • Brand Name
    SMT
  • Certification
    ISO/SGS Audit
  • Model Number
    SMT-CW300
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Inner preservative film,outer regeneration plywood case package suitable for air and sea transportation, effective for protecting the goods.
  • Delivery Time
    40 - 65 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1pcs / 40 - 65 days

Induction Motor Winding Machine For Washing Machine / Fan / Pump

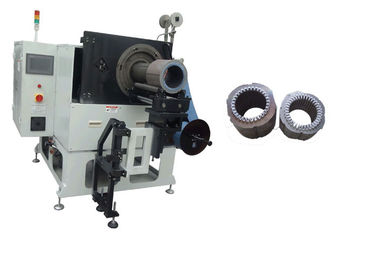

SMT - CW300 Induction Motor Winding Machine for Washing Machine / Fan / Pump





This machine gang controls the main shaft and stator indexing shaft through PLC control system assembly. It conducts the insulation paper’s cutting, forming and inserting into the stator slots to all kinds of motor stators, to isolate the stator slots against motor windings. The machine has the advantages of slot insulation paper precise , stable forming, high production efficiency, low cost, easy and reliable use and maintenance. It is suitable for small and medium-sized three phase motor, gasoline generator,etc. Inserting insulation paper automatically from bottom of stator slot;automatic paper feeding, edge folding and forming;characterized by low noise,fast speed,excellent forming,etc.



(1) Main Technical Data



Model CW300
Core length 80-300mm
Stator I.D. 100-200mm
Stator O.D.

≤300mm

Height of Edge Folded 3-10mm
Insulation paper's thickness ≤0.35mm
Efficiency 1.2s/s
Power Supply 380V/50/60Hz 0.75Kw
MOQ 1 set of Slot Paper Insertion Machine
Machine dimension (L)1100*(W)900*(H)1500mm



Description:



This Stator Slot Paper Inserting Machine adpots a horizontal structure. It is made special for big size, long stack length, big power motors. All the paper inserting process is automatically done by machine, such as inserting insulation paper automatically from bottom of stator slot; automatic paper feeding, edge folding and forming. All the related information can be set in the touch screen, like slot number, inserting type and so on. This paper inserting machine is characterized by low noise, fast speed, and excellent forming. it is convenient and easy for different slot number stator production and changing tooling.



(2) Application



1. Suitable exclusively for large and medium-sized motors,inserting insulation paper automatically from bottom of stator slot;

2. Automatic paper feeding,edge folding and forming;

3. Characterized by low noise, fast speed, excellent forming,etc;

4. Slot number change is controlled by electric;

5. Interval slot inserting and skip slot inserting could be at option;

6. It is convenient and easy for different slot number stator production and changing tooling;

7. Especially suitable for generator,deep pump motor, three phase machine,etc.


(3) Machine Main Characteristic



It is a special design specific to different design or different sizes of slot; can finish insulation paper insertion at a time; automatic adjustment to perimeter, automatic cutting paper, automatic hemming and automatic inserting when inserting to various or different-sized slot; use servo paper inserting machine to feed paper and settle breadth; interpersonal interface sets required specific parameter; forming mould is adjustable to different sizes of slot automatically; characterized by simple operation, low noise, fast speed and high automaticity.
The equipment adopts programmable terminal, also called touched screen, that can set and display necessary information, it is easy to operate and reliable.



(4) OEM/ODM



Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.



(5) Production Line Profile



With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.
