Detailed Product Description
Name: H20-80mm Stator Slot Insulation Machine Inserting Insulator For AC Motor Making Model: SMT-C100
Core Length: 10~90mm Stator ID.: Max 80mm
TAKT Time: ≈0.45s Per Slot NW: ≈400Kg
High Light:

electric motor winding equipment

,

paper inserter

,

AC Motor Stator Slot Insulation Machine

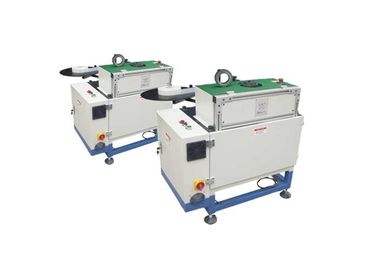

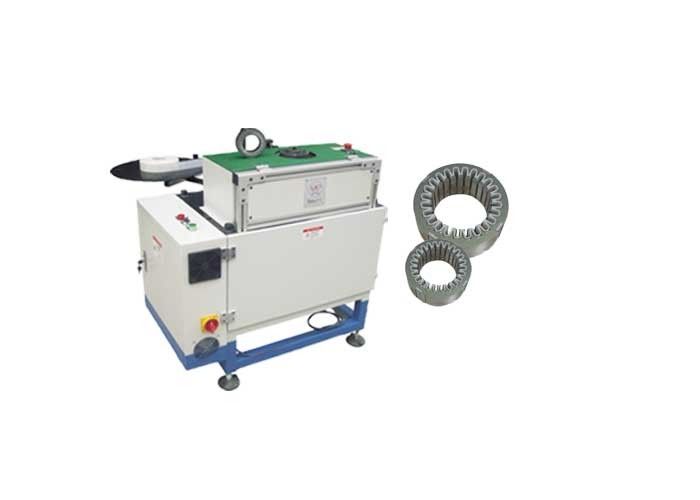

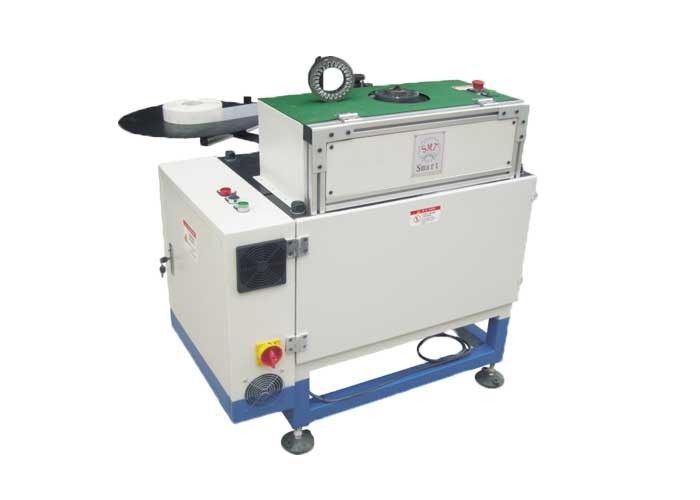

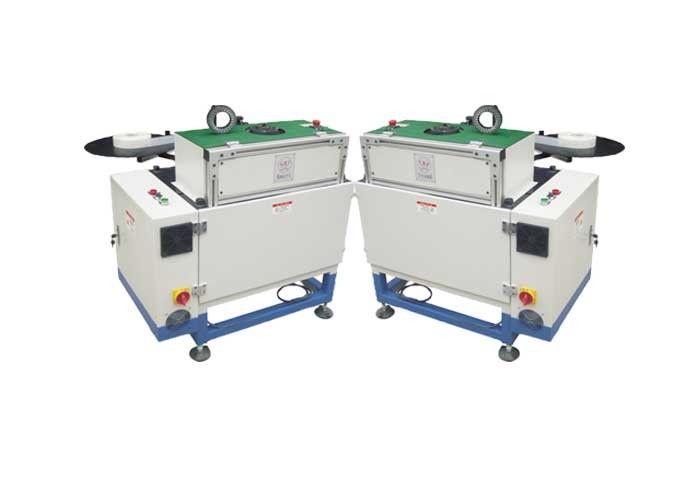

H20-80mm Stator Slot Insulation Machine Inserting Insulator for AC Motor Making SMT-C100





A kind of normal slot insulation machine, this type of machine is just suitable for stators with single slot shape, which can insert insulation paper slot by slot or interval slot automatically.



(1) Technical Parameters



Model

SMT-C100

Stack height

10~90mm

Stator I.D

Φ20~Φ80mm

Stator O.D

≤Φ140mm

Height of edge folded

2.5~4mm

Insulation paper’s thickness

≤0.25mm

TAKT time

≈0.45s/s

Power supply

380V/50/60Hz 0.75Kw

Weight

≈400Kg

Dimension

(L)1100×(W)650×(H)1050mm



(2) Brief Instruction of Machine



Machine "H20-80mm Stator Slot Insulation Machine Inserting Insulator for AC Motor Making " is used for inserting insulaton paper to stator slots automatically at one time, which is just suitable for stators with single slot shape. The tooling design is according to stator slots shape and dimension. Different kinds of tooling is available for stator prodction.



(3) Main Specifications



1. Suitable for small and medium-sized three phase motor, gasoline generator, etc.

2. Inserting insulation paper automatically from bottom of stator slot;

3. Automatic paper feeding, cuff folding and forming, paper inserting;

4. Indexing is finished by stepper motor;

5. Characterized by low noise, fast speed, excellent forming, etc.;

6. Slot number change is controlled by electric;

7. Interval slot inserting and skip slot inserting could be at option;

8. It is convenient and easy for different slot number stators production and changing tooling.



(4) Services



We're specialized in R&D and manufacturing machines for different induction motors production, such as Coil Winding machine, Coil Inserting Machine, etc.

Design and manufacturing are decided according to standard idea and customer's special request. For example, apperance, allocation, tooling and so on, all can be specialized if customer wants. Besides, we can help to design the drawing of machine layout in customer site when necessary.

Our engineers will provide customers with professional technical support. Within one year warranty period, some support and parts need to be replaced will be for free.

Overseas after-service is also available. If customer needs our help, our after-sales engineers will be at customer's site within the shortest time.

With exclusive service, professional team and reliable quality, SMT provide customer with different kinds of equipments for various motors production. It can be one set machine or the whole prodcution line from winding process to final forming process. So especially for customer who wants the whole production line, we can provide manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training, even complete turn-key project.



(5) Application



Our machines are mainly applied in various induction motors such as washing machine motor, air conditioner motor, general purpose pump motor, reducer motor, servo motor, table fan motor, new energy motor and so on.
