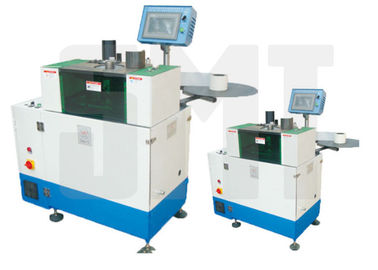

ID 80mm Stator Insulation Paper Inserting Machine For AC Motor Auto Making

ID 80mm Stator Insulation Paper Inserting Machine For AC Motor Auto Making

  • High Light

    electric motor winding equipment

    ,

    slot insulation machine

    ,

    ID 80mm Stator Paper Inserting Machine

  • Name
    ID 80mm Stator Insulation Paper Insertion Machine For AC Motor Auto Making
  • Model
    SMT-SC80
  • Stack Height
    ≤60mm
  • Stator ID Max
    80mm
  • Stator ID Min
    40mm
  • TACT Time
    ≈0.45s/s
  • Place of Origin
    China
  • Brand Name
    SMT
  • Certification
    ISO / BV / SGS
  • Model Number
    SC80
  • Minimum Order Quantity
    1 Set
  • Price
    Price unit: USD; Price is negotiable according to different stator production request.
  • Packaging Details
    Plastic wrapping film, vacuum package and plywood cases. The package size depends on actual machine size.
  • Delivery Time
    45-50 days after placing order
  • Supply Ability
    15 Set/Sets per Month

ID 80mm Stator Insulation Paper Inserting Machine For AC Motor Auto Making

ID 80mm Stator Insulation Paper Insertion Machine for AC Motor Auto Making SMT-SC80





Main Specifications



1. A special design for stators with different slot shapes and sizes, like washing machine motor, fan motor, compressor motor, etc.;

2. It can finish insulation paper insertion with one roll insulation paper at one time;

3. Automatic adjustment of paper length and width, paper cutting, cuff forming and inserting when inserting paper to different-size and different-shape slot;

4. Paper feeding and cutting are finished by servo motors;

5. Interpersonal interface sets required specific parameters;

6. Forming mold is adjustable to different slot sizes automatically;

7. Characterized by simple operation, low noise, fast speed and high automation.

8. Indexing can be configured with servo motors or stepper motors.





Compared with common slot insulation machines, SC series have an advantage because it's able to insert insulation paper into different slot shapes at one time. If one stator with several slot shapes, this kind of slot insulation machine is more suitable.



(1) Technical Parameters



Model

SMT-SC80

Stack height

≤60mm

Stator I.D

Φ40~Φ80mm

Stator O.D

≤Φ160mm

Cuff height

2.5~4mm

Insulation paper’s thickness

≤0.25mm

TAKT time

≈0.45s/s

Power supply

380V/50/60Hz 0.75Kw

Air Pressure

≥0.5MPa

Weight

≈450Kg

Dimension(L×W×H mm)

1150×1050×1450mm



(2) Brief Instruction of Machine



Machine "ID 80mm Stator Insulation Paper Insertion Machine for AC Motor Auto Making" is used for inserting insulaton paper to stator slots automatically at one time, especially for stators with different slot shapes.

The tooling design is according to stator slots shape and dimension. Different kinds of tooling is available for stator prodction.





(4) Services



We're dedicated to R&D and manufacturing machines for different induction motors production, such as Coil Winding machine, Coil Inserting Machine, etc.

Design and manufacturing are standard except customer has special request. For example, shape design, allocation and colour,etc. can be specilized. Besides, we can help to arrange the layout of machines in customer site when necessary.

Our engineers will provide customers with professional technical support. Within one year warranty period, some support and parts need to be replaced will be without charge.

Overseas after-service is also available. If customer needs our help, our after-sales engineers will be at customer's site within the shortest time.

With good service, professional team and reliable quality, SMT provide customer with different kinds of equipments for various motors production. It can be one set machine or the whole prodcution line from winding process to final forming process. So especially for customer who wants the whole production line, we can provide manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training, even complete turn-key project.



(5) Application



Our machines are mainly applied in various induction motors such as washing machine motor, air conditioner motor, general purpose pump motor, reducer motor, industrial three-phase motor, fan motor and new energy motor, etc.
