|Name:||Auto Insulation Insertion Machine Inserting Different Slots By One Roll Of Paper||Model:||SMT-SC160|
|Stack Height:||At Most: 160mm||Cuff Height:||Max: 7mm|
|TAKT Time:||≈0.8s/slot||Air Pressure:||Over 0.5MP|
electric motor winding equipment,

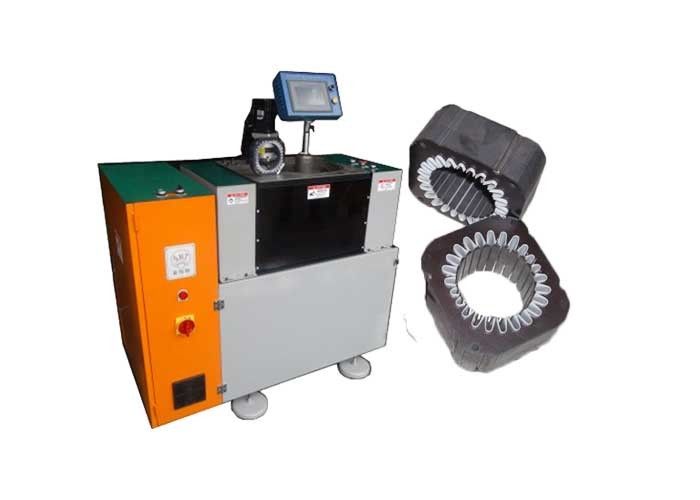

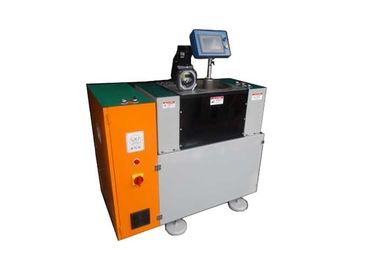

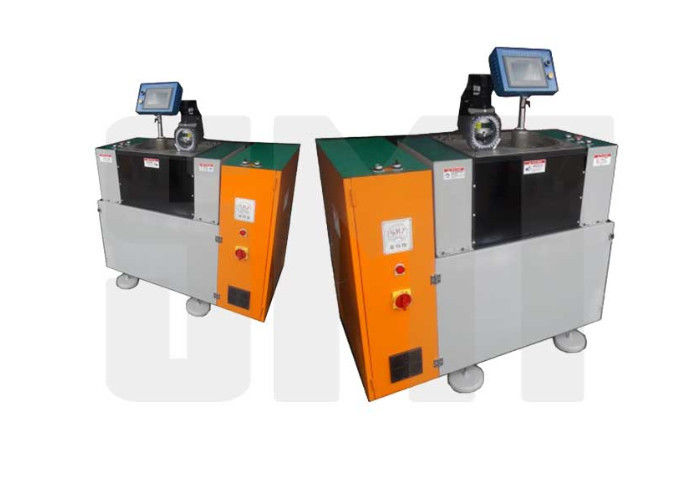

Auto Insulation Insertion Machine Inserting Different Slots by One Roll of Paper SMT-SC160
Brief Instruction of Machine
Machine "Auto Insulation Insertion Machine Inserting Different Slots by One Roll of Paper" is used for inserting insulaton paper to stator slots automatically at one time, especially for stators with different slot shapes.
The tooling design is according to stator slots shape and dimension. Different kinds of tooling is available for stator prodction.
(1) Technical Parameters
|Insulation paper’s thickness||≤0.35mm|
|Power supply||380V/50/60Hz 1.1Kw|
(3) Main Specifications
1. A special design for stators with different slot shapes and sizes, like washing machine motor, fan motor, compressor motor, etc.;
2. It can finish insulation paper insertion with one roll insulation paper at one time;
3. Automatic adjustment of paper length and width, paper cutting, cuff forming and inserting when inserting paper to different-size and different-shape slot;
4. Paper feeding and cutting are finished by servo motors;
5. Interpersonal interface sets required specific parameters;
6. Forming mold is adjustable to different slot sizes automatically;
7. Characterized by simple operation, low noise, fast speed and high automation.
8. Indexing can be configured with servo motors or stepper motors.
We're dedicated to R&D and manufacturing machines for different induction motors production, such as Coil Winding machine, Coil Inserting Machine, etc.
Design and manufacturing are standard except customer has special request. For example, shape design, allocation and colour,etc. can be specilized. Besides, we can help to arrange the layout of machines in customer site when necessary.
Our engineers will provide customers with professional technical support. Within one year warranty period, some support and parts need to be replaced will be without charge.
Overseas after-service is also available. If customer needs our help, our after-sales engineers will be at customer's site within the shortest time.
With good service, professional team and reliable quality, SMT provide customer with different kinds of equipments for various motors production. It can be one set machine or the whole prodcution line from winding process to final forming process. So especially for customer who wants the whole production line, we can provide manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training, even complete turn-key project.
Our machines are mainly applied in various induction motors such as washing machine motor, air conditioner motor, general purpose pump motor, reducer motor, industrial three-phase motor, fan motor and new energy motor, etc.
