Stator Winding Final Shaping Automatic Coil Forming Machine Vertical type Full Automatic

Stator Winding Final Shaping Automatic Coil Forming Machine Vertical type Full Automatic

  • High Light

    Stator Coil Winding Machine

    ,

    electric motor winding equipment

  • Name
    Stator Winding Final Shaping Automatic Coil Forming Machine
  • Stack Height
    16-100mm
  • Machine Type
    Vertical
  • Automatic Grade
    Full-automatic
  • Customized
    Customized
  • After-sales Service
    Engineers Available
  • Function
    Stator Shaping Machine
  • Color
    White Or Custom-order
  • Place of Origin
    China
  • Brand Name
    SMT
  • Certification
    ISO / SGS Audit
  • Model Number
    SMT - ZJ160
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Plywood Box with Your Requirement.
  • Delivery Time
    52 - 79 days
  • Payment Terms
    T/T , L/C
  • Supply Ability
    1pcs / 52 - 79 days

Stator Winding Final Shaping Automatic Coil Forming Machine Vertical type Full Automatic

Alternator Stator Motor Rotor Coil Forming Machine 50Hz / 60Hz 3.75Kw

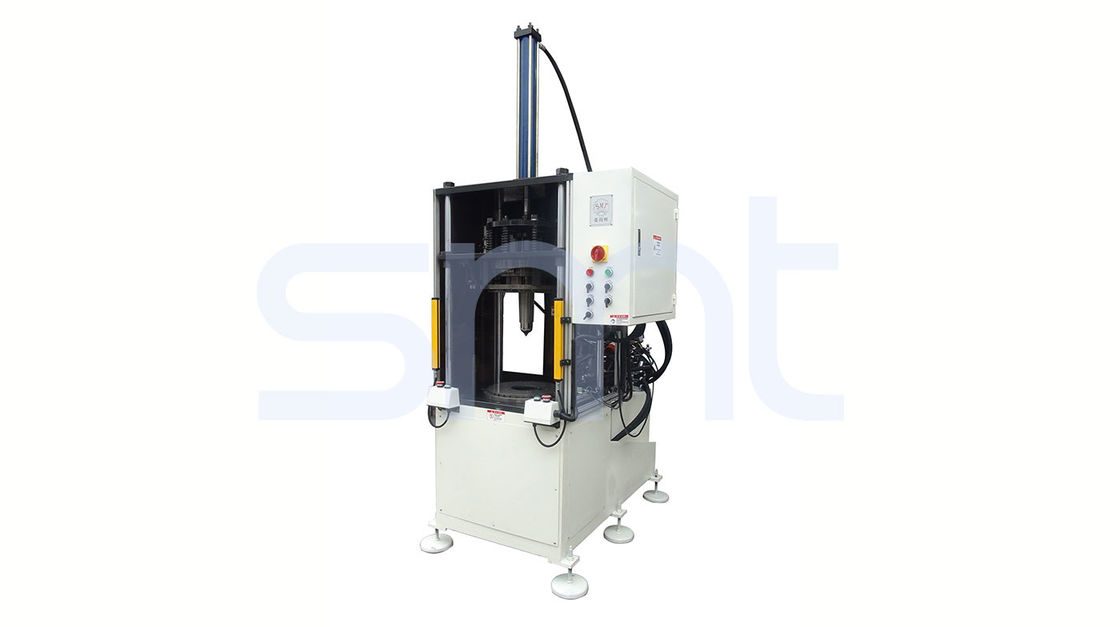

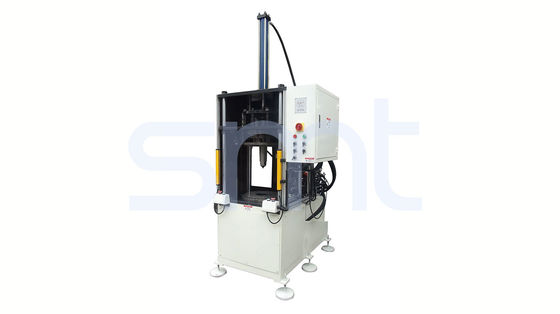

Stator Coil Final Forming Machine is used for stator coil final forming, it is driven by the hydraulic system, controlled by the PLC. Its tooling design adopts flexible principles of inner expansion. The outer wrapping and edge forming form the stator winding. It can ensure appropriate winding outside dimension after lacing. It is of highly efficiency and qualified forming. High technology, stable performance and reasonable price.
Required information for quotation: stator drawing before forming and after forming, including stator O.D, stator I.D, stator stack height, and end coil dimension.



(1) Main Technical Features



Model ZJ160
Stator I.D. 31 -101mm
Stator O.D. ≤160mm
Stack Height 16-100mm
Displacement of cylinder ≤20F
MOQ 1 Set Mid - Forming Machine
Power Supply 380V/50/60Hz 3.75Kw
Weight 1000kgs
Machine dimension (L)1200*(W)750*(H)2500



(2) Application



The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.

Focusing on international trading, we have placed our priority on both product quality and service, which are the key elements that make your brand more competitive in the global market. If you are looking for machines, components, or OEM products, SMT motor Equipment will be your most reliable partner.

We are ready to establish a long business relationship with your esteemed company as a supplier, a partner and a friend. We warmly welcome you from worldwide.


(3) Machine Main Characteristic



This machine adopts whole hydraulic system and PCL program.

This machine can adjust the forming stack length by changing washer.

Both slot paper and wedge should not be damaged or turned over. The stator should not be deformation or stator lamination should not be upward. There is no wire enamel broken.

Production capacity ≤13s/set (exclude loading/unloading time)

Primary qualification rate ≥99.5%, after rework, the rate ≥99.9%

This machine adopts safety grating protection system. Operator need to stand when operating.

Machine adopts two hands simultaneously start button to ensure safety.
