Name: Automatic Slot Insulation Paper Inserting Machine For Induction Motor Stator Model: SMT-CB160
Stack Height: 10~90mm Cuff Height: 2.5~4mm
TAKT Time: ≈0.45s/s Weight: ≈400Kg
High Light:

electric motor winding equipment

,

slot insulation machine

,

low noise Paper Inserting Machine

Simple Stator Slot Insulation Machine for Micro Table Fan Motors SMT-C100





Simple operation, low noise, fast speed and high automation. Insert slot paper for different shape slot at one time. PLC and touch screen control.



(1) Technical Parameters



Model SMT-C100
Stack height 10~90mm
Stator I.D Φ20~Φ80mm
Stator O.D ≤Φ140mm
Height of edge folded 2.5~4mm
Insulation paper’s thickness ≤0.25mm
TAKT time ≈0.45s/s
Power supply 380V/50/60Hz 0.75Kw
Weight ≈400Kg
Dimension (L)1100×(W)650×(H)1050mm



(2) Brief Instruction of Machine



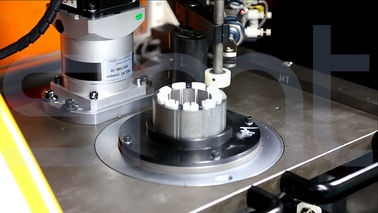

Machine "Simple Stator Slot Insulation Machine for Micro Table Fan Motors" is used for inserting insulaton paper to stator slots automatically at one time, which is just suitable for stators with single slot shape. The tooling design is according to stator slots shape and dimension. Different kinds of tooling is available for stator prodction.



(3) Main Specifications



1. Suitable for small and medium-sized three phase motor, gasoline generator, etc.

2. Inserting insulation paper automatically from bottom of stator slot;

3. Automatic paper feeding, cuff folding and forming, paper inserting;

4. Indexing is finished by stepper motor;

5. Characterized by low noise, fast speed, excellent forming, etc.;

6. Slot number change is controlled by electric;

7. Interval slot inserting and skip slot inserting could be at option;

8. It is convenient and easy for different slot number stators production and changing tooling.



(4) Services



We're specialized in R&D and manufacturing machines for different induction motors production, such as Coil Winding machine, Coil Inserting Machine, etc.

Design and manufacturing are decided according to standard idea and customer's special request. For example, apperance, allocation, tooling and so on, all can be specialized if customer wants. Besides, we can help to design the drawing of machine layout in customer site when necessary.

Our engineers will provide customers with professional technical support. Within one year warranty period, some support and parts need to be replaced will be for free.

Overseas after-service is also available. If customer needs our help, our after-sales engineers will be at customer's site within the shortest time.

With exclusive service, professional team and reliable quality, SMT provide customer with different kinds of equipments for various motors production. It can be one set machine or the whole prodcution line from winding process to final forming process. So especially for customer who wants the whole production line, we can provide manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training, even complete turn-key project.



(5) Application



Our machines are mainly applied in various induction motors such as washing machine motor, air conditioner motor, general purpose pump motor, reducer motor, servo motor, table fan motor, new energy motor and so on.
