Horizontal Stator Paper Inserting Machine 3 - 10mm Edge Folded Low Noise

Horizontal Stator Paper Inserting Machine 3 - 10mm Edge Folded Low Noise

  • High Light

    electric motor winding equipment

    ,

    slot insulation machine

    ,

    Horizontal Stator Paper Inserting Machine

  • Name
    Automatic Motor Stator Slot Insulation Paper Inserting Machine
  • Insulation Paper's Thickness
    ≤0.35mm
  • Stator I.D.
    100-200mm
  • Stator O.D.
    ≤300mm
  • Height Of Edge Folded
    3-10mm
  • Machine Dimension
    (L)1100*(W)900*(H)1500mm
  • Place of Origin
    China
  • Brand Name
    SMT
  • Certification
    ISO/SGS Audit
  • Model Number
    SMT-CW450
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Plywood Box With a Plastic Bag Outside.
  • Delivery Time
    40 - 59 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1pcs / 41 - 59 days

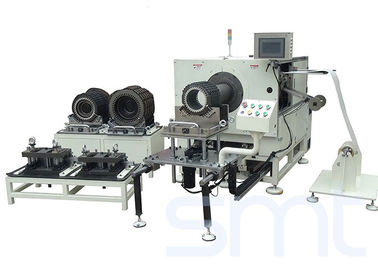

Horizontal Stator Paper Inserting Machine 3 - 10mm Edge Folded Low Noise

Automatic Motor Stator Slot Insulation Induction Motor Winding Machine



This machine is characterized by low noise, fast speed, excellent forming, it is convenient and easy for different slot number stator production and changing tooling.



(1) Main Technical Information



Model CW450
Core length 80-300mm
Stator I.D. 100-200mm
Stator O.D. ≤300mm
Height of Edge Folded 3-10mm
Insulation paper's thickness ≤0.35mm
Efficiency 1.2s/s
Power Supply 380V/50/60Hz 0.75Kw
MOQ 1 set of Slot Paper Insertion Machine
Machine dimension (L)1100*(W)900*(H)1500mm



(2) Application



1. Suitable exclusively for large and medium-sized motors,inserting insulation paper automatically from bottom of stator slot;

2. Automatic paper feeding,edge folding and forming;

3. Characterized by low noise, fast speed, excellent forming,etc;

4. Slot number change is controlled by electric;

5. Interval slot inserting and skip slot inserting could be at option;

6. It is convenient and easy for different slot number stator production and changing tooling;

7. Especially suitable for generator,deep pump motor, three phase machine,etc.


(3) Machine Main Characteristic



It is a special design specific to different design or different sizes of slot; can finish insulation paper insertion at a time; automatic adjustment to perimeter, automatic cutting paper, automatic hemming and automatic inserting when inserting to various or different-sized slot; use servo paper inserting machine to feed paper and settle breadth; interpersonal interface sets required specific parameter; forming mould is adjustable to different sizes of slot automatically; characterized by simple operation, low noise, fast speed and high automaticity.
The equipment adopts programmable terminal, also called touched screen, that can set and display necessary information, it is easy to operate and reliable.



(4) OEM/ODM



Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.



(5) Production Line Profile



With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.
