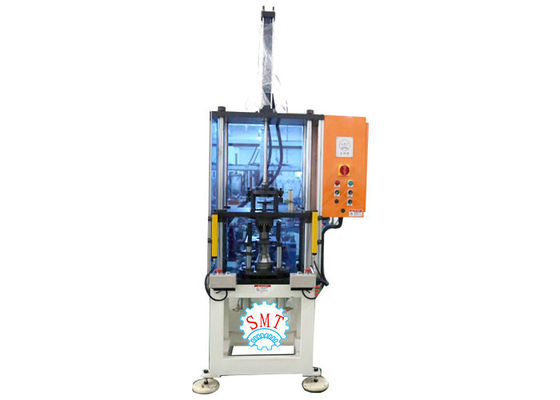

Automobile Generator Stator Coil Expanding Machine/ Pre Forming Machine

Automobile Generator Stator Coil Expanding Machine/ Pre Forming Machine

  • High Light

    Stator Coil Winding Machine

    ,

    electric motor winding equipment

  • Name
    Automatic Stator Coil Pre-Forming Machine
  • Model
    ZZ160
  • Stator I.D.
    30-100mm
  • Stator O.D.
    ≤160mm
  • Stack Height
    15- 100mm
  • Power Supply
    380V/50/60Hz 3Kw
  • Machine Dimension (LxWxH)
    1200x 7x 2200mm
  • Machine Weight
    About 800kg
  • Transport Package
    1 Ply-Wooden Case
  • Power
    380V/50/60Hz
  • Place of Origin
    China
  • Brand Name
    SMT
  • Certification
    ISO / SGS Audit
  • Model Number
    SMT-KZ160
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Plywood Box
  • Delivery Time
    1pcs / 4 - 9 weeks
  • Payment Terms
    T/T , L/C
  • Supply Ability
    1pcs / 4 - 9 weeks

Automobile Generator Stator Coil Expanding Machine/ Pre Forming Machine

Electric motor stator coil forming machine/copper / aluminum wire/motor manufacturing



Stator Winding Middle Forming Machine is driven by hydraulic system; PLC programming;individual guard teeth in each slot settles fied wire and jump wire to ensure the reliability of electrical leakage distance; whole schematic design of inner expansion, outer wrapping and edge forming ensures appropriate winding outside dimension. Middle forming is done after winding inserting but before winding lacing.



(1) Main Technical Features



Model KZ160
Stack height 15- 100mm
Stator I.D 30-100mm
Stator O.D ≤160mm
Displacement of cylinder 20F
Input 380V/50/60Hz
Power supply 1.5kw
Machine weight About 800kg
Machine dimension (LxWxH) 1200x 7x 2200mm



(2) Application



The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.

Focusing on international trading, we have placed our priority on both product quality and service, which are the key elements that make your brand more competitive in the global market. If you are looking for machines, components, or OEM products, SMT motor Equipment will be your most reliable partner.

We are ready to establish a long business relationship with your esteemed company as a supplier, a partner and a friend. We warmly welcome you from worldwide.


(3) Machine Main Characteristic



This machine adopts whole hydraulic system and PCL program.

This machine can adjust the forming stack length by changing washer.

Both slot paper and wedge should not be damaged or turned over. The stator should not be deformation or stator lamination should not be upward. There is no wire enamel broken.

Production capacity ≤13s/set (exclude loading/unloading time)

Primary qualification rate ≥99.5%, after rework, the rate ≥99.9%

This machine adopts safety grating protection system. Operator need to stand when operating.

Machine adopts two hands simultaneously start button to ensure safety.

Efficiency stator coil forming machine,stator coil forming machine,coil forming machine work,coil forming machine used



(4) OEM/ODM



Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.



(5) Application:


This machine is suitable for air conditioner motor, washing machine motor, compression motor, fan motor, generator motor, pump motor, single phase and three phase induction motor.

Forming machine operation step
1. Power on the machine
2. Put the stator to the tooling
3. Press " auto" button by two hands
4. Machine will automatic do the forming
5. Unload the stator by manual


(6) Information needed for forming machine inquiry


It will be better if customer could send us detailed drawing including below information.
1. Stator lamination drawing
2. Stator stack drawing
3. Stato winding drawing
4.Required productivity
5. Other technical requirement
If possible, it will be better if customer can send us samples.
