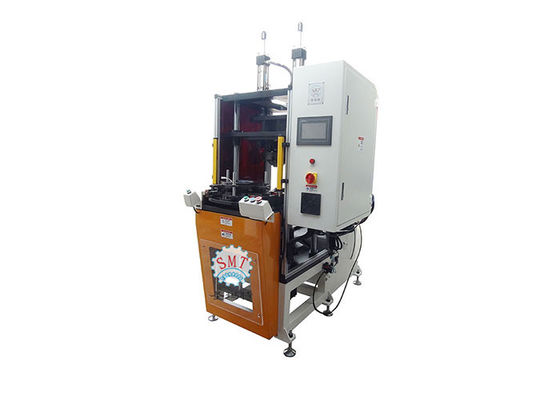

Name: Stator Coil Shaping Machine Middle Forming Machine Model: ZZ190
Stator I.D.: 50-100mm Stator O.D.: ≤160mm
Height Of Edge Folded: 3-10mm Power Supply: 380V/50/60Hz 3Kw
High Light:

Stator Coil Winding Machine

,

electric motor winding equipment

Induction Motor Stator Coil Final Forming Machine SMT - ZZ160



Easy operation.
High efficiency production.
High precision.
Fast mould change.
Easy maintenance
Simple mechanism to ensure trouble-free & long-life operation.
Driven by hydraulic system and PLC.
Good quality and competitive price.
Provide various stator winding shaping solutions according to your production needs.



OEM or ODM are accepted



Stator winding shaping machine, also known as coil shaping machine, is especially designed to shape the end coils before the step of lacing. Because of the unique design of the model, a perfect appearance can be achieved after shaping. Therefore, it can not only speed up your production efficiency, but also improve your quality assurance.

Ningbo Hisky motor technology co.,ltd is a professional manufacturer and supplier of coil shaping machine and stator winding shaping machine from china. After years of market development, our products have been exporting to Europe, America, Asia and other international markets. When you need to improve your production process, please feel free to contact us and find out how our stator winding shaping machine perform.



(1) Main Technical Features



Model ZZ190
Stack height 16-100mm
Stator I.D 50-100mm
Stator O.D ≤190mm
Displacement of cylinder 20F
Input 380V/50/60Hz
Power supply 3.75kw
Machine weight About 700kg
Machine dimension (LxWxH) 650x 900 x 2300mm



(2) Application



The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.


(3) Machine Main Characteristic



This machine adopts whole hydraulic system and PCL program.

This machine can adjust the forming stack length by changing washer.

Both slot paper and wedge should not be damaged or turned over. The stator should not be deformation or stator lamination should not be upward. There is no wire enamel broken.

Production capacity ≤13s/set (exclude loading/unloading time)

Primary qualification rate ≥99.5%, after rework, the rate ≥99.9%

This machine adopts safety grating protection system. Operator need to stand when operating.

Machine adopts two hands simultaneously start button to ensure safety.
