Electric Motor Stator Slot Insulation Paper Inserting Machine 3 - 7mm Cuff Height

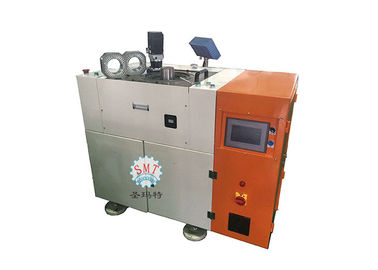

Specialized Slot Insulation Machine for Medium-size Induction Motors SMT-SC160


This stator paper insertion machine is used to insert insulation paper into stator slots. Machine will firstly do the paper forming process by its tooling. The edge folded of insulation paper can be customized. Then it will insert the formed papaer into stator slot by slot. The whole process is done by machine automatically. Due to its easy operation and fast tooling change, this paper inserting machine greatly save labor cost and improve working efficiency.


(1) Technical Parameters


Model SMT-SC160
Stack height ≤160mm
Stator I.D Φ70~Φ150mm
Stator O.D ≤Φ200mm
Cuff height 3~7mm
Insulation paper’s thickness ≤0.35mm
TAKT time ≈0.8s/s
Power supply 380V/50/60Hz 1.1Kw
Air Pressure ≥0.5MPa
Weight ≈550Kg
Dimension(L×W×H mm) 1250×1100×1500mm


(2) Brief Instruction of Machine


Machine "Specialized Slot Insulation Machine for Medium-size Induction Motors" is used for inserting insulaton paper to stator slots automatically at one time, especially for stators with different slot shapes.

The tooling design is according to stator slots shape and dimension. Different kinds of tooling is available for stator prodction.


(3) Main Specifications


1. A special design for stators with different slot shapes and sizes, like washing machine motor, fan motor, compressor motor, etc.;

2. It can finish insulation paper insertion with one roll insulation paper at one time;

3. Automatic adjustment of paper length and width, paper cutting, cuff forming and inserting when inserting paper to different-size and different-shape slot;

4. Paper feeding and cutting are finished by servo motors;

5. Interpersonal interface sets required specific parameters;

6. Forming mold is adjustable to different slot sizes automatically;

7. Characterized by simple operation, low noise, fast speed and high automation.

8. Indexing can be configured with servo motors or stepper motors.


(4) Services


We're dedicated to R&D and manufacturing machines for different induction motors production, such as Coil Winding machine, Coil Inserting Machine, etc.

Design and manufacturing are standard except customer has special request. For example, shape design, allocation and colour,etc. can be specilized. Besides, we can help to arrange the layout of machines in customer site when necessary.

Our engineers will provide customers with professional technical support. Within one year warranty period, some support and parts need to be replaced will be without charge.

Overseas after-service is also available. If customer needs our help, our after-sales engineers will be at customer's site within the shortest time.


(5) Application


Our machines are mainly applied in various induction motors such as washing machine motor, air conditioner motor, general purpose pump motor, reducer motor, industrial three-phase motor, fan motor and new energy motor, etc.


(6) Company Profile - Suzhou Smart motor Equipment Manufacturing Co.,Ltd


Suzhou Smart motor Equipment Manufacturing Co.,Ltd is a Chinese manufacturer, which is specialize in R&D, manufacturing and selling automatic equipments for motor production as well as exporting equipments to the world. The company now has nearly 81 employees including more than 10 engineers and technicians, with the building area about 5,000 square meters and hundered sets of advanced production and equipments under testing.

(7) Competitive advantages
Variety of application, easy operation.
We have Overseas Service Center.
Machine is controlled by PLC. All the parameter can be set in the touch screen.
It is suitable for stators with different model number and dimension.
The operation and tooling change process is easy.
We could customize machine for our customer as per their requirement.
We directly supply our machines to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.
